NKK Column Shoe

NKK

NKK column shoe: welded base, side plates, rebars; 5 sizes for strong moment connections. Ideal for robust construction needs.

Features

Air Traffic Control

Less temporary supports

Reduced need for temporary supports creating a simple install process.
Arrows Merge

Faster Install Time

Faster and easier adjustment of columns in installation in vertical direction and lining.
Globe Hemisphere West

Reusable connection

A bolted connection offers enhanced potential for reusing elements in a circular economy.

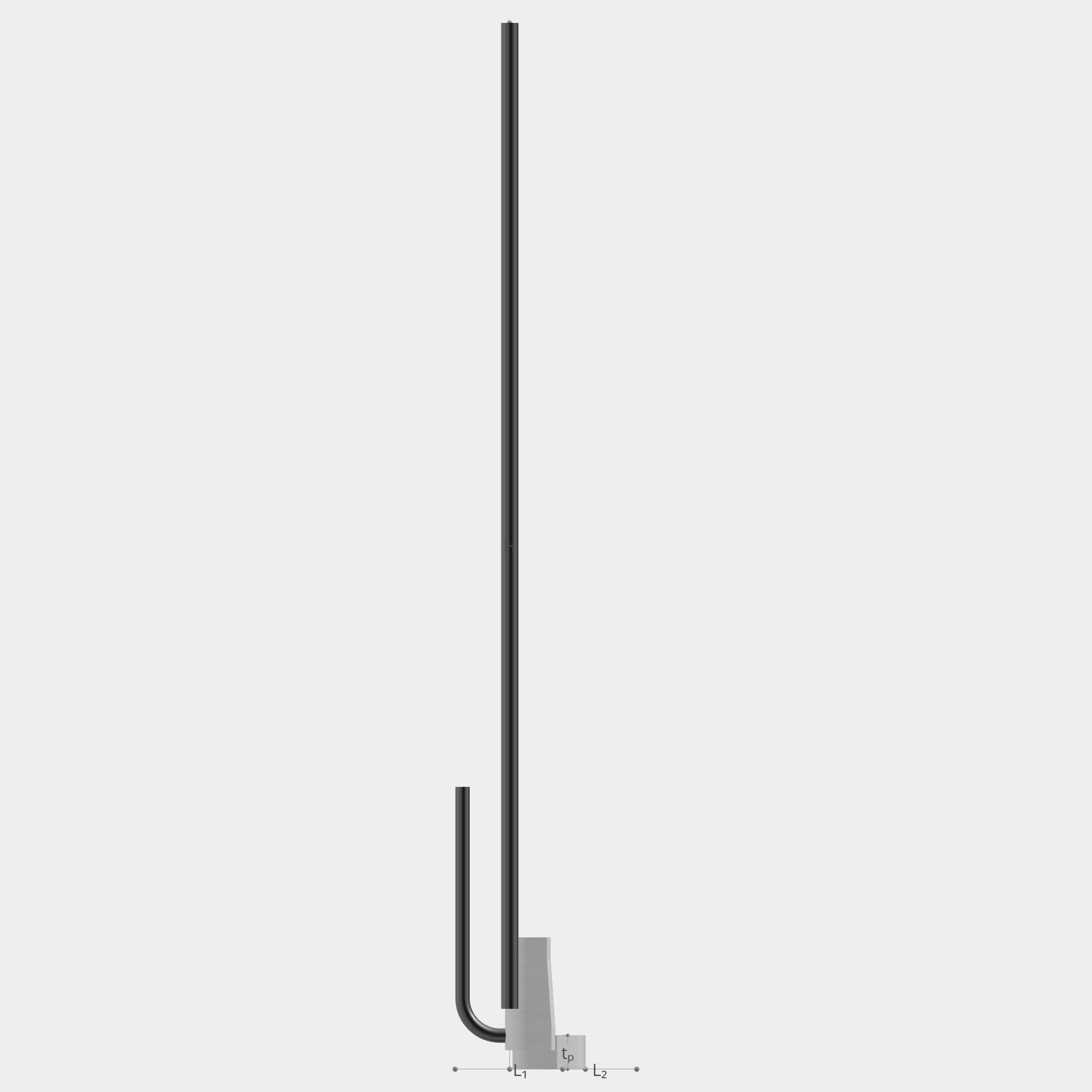

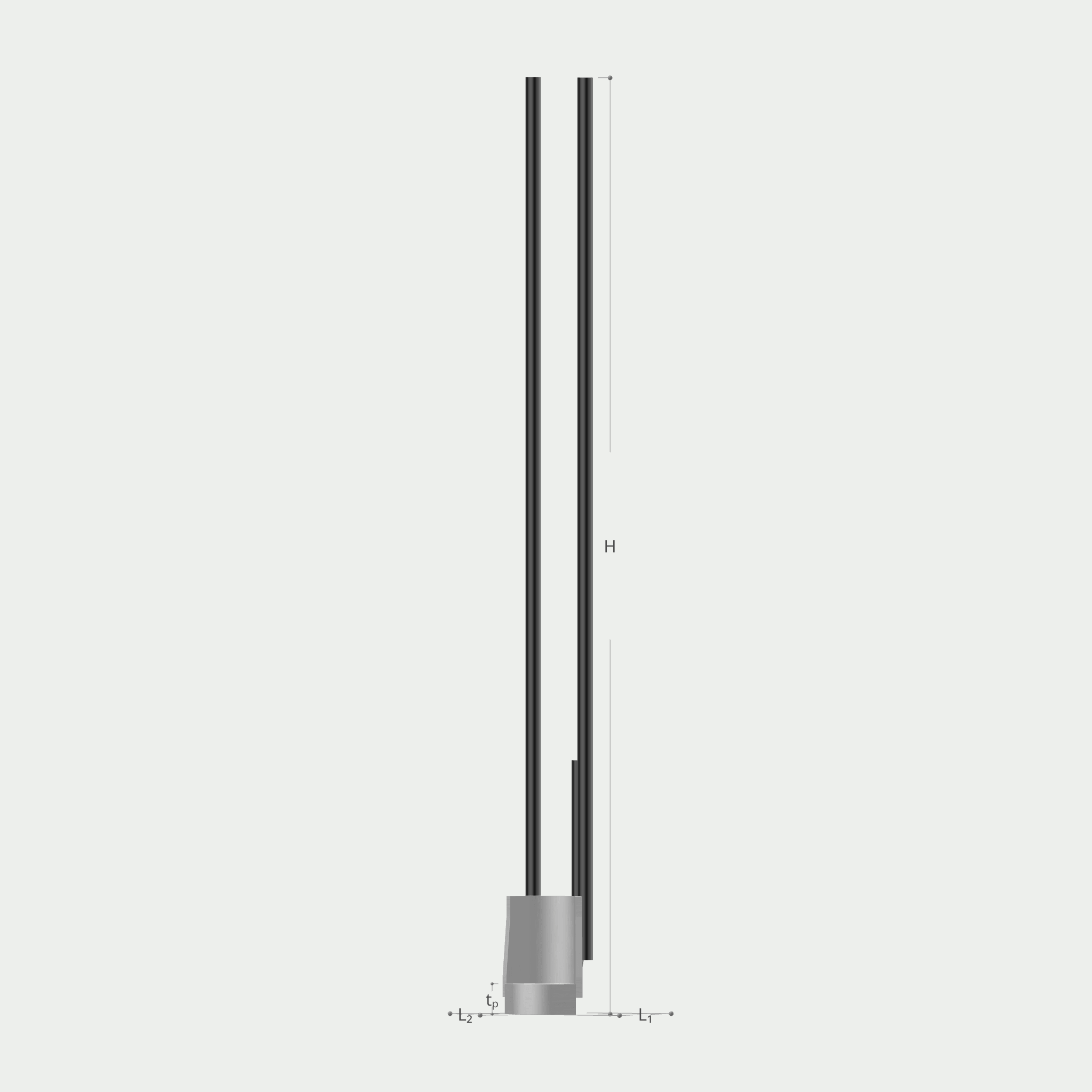

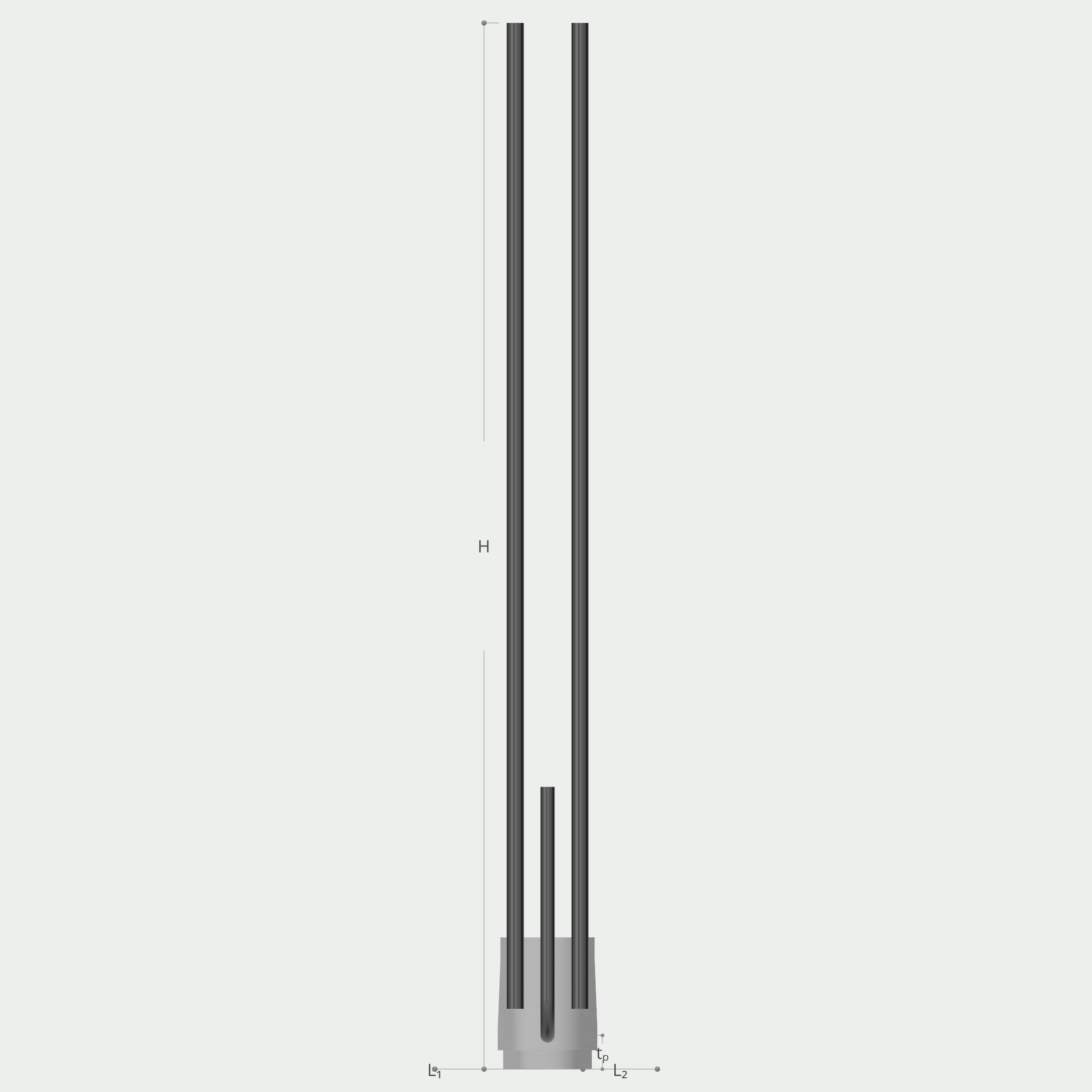

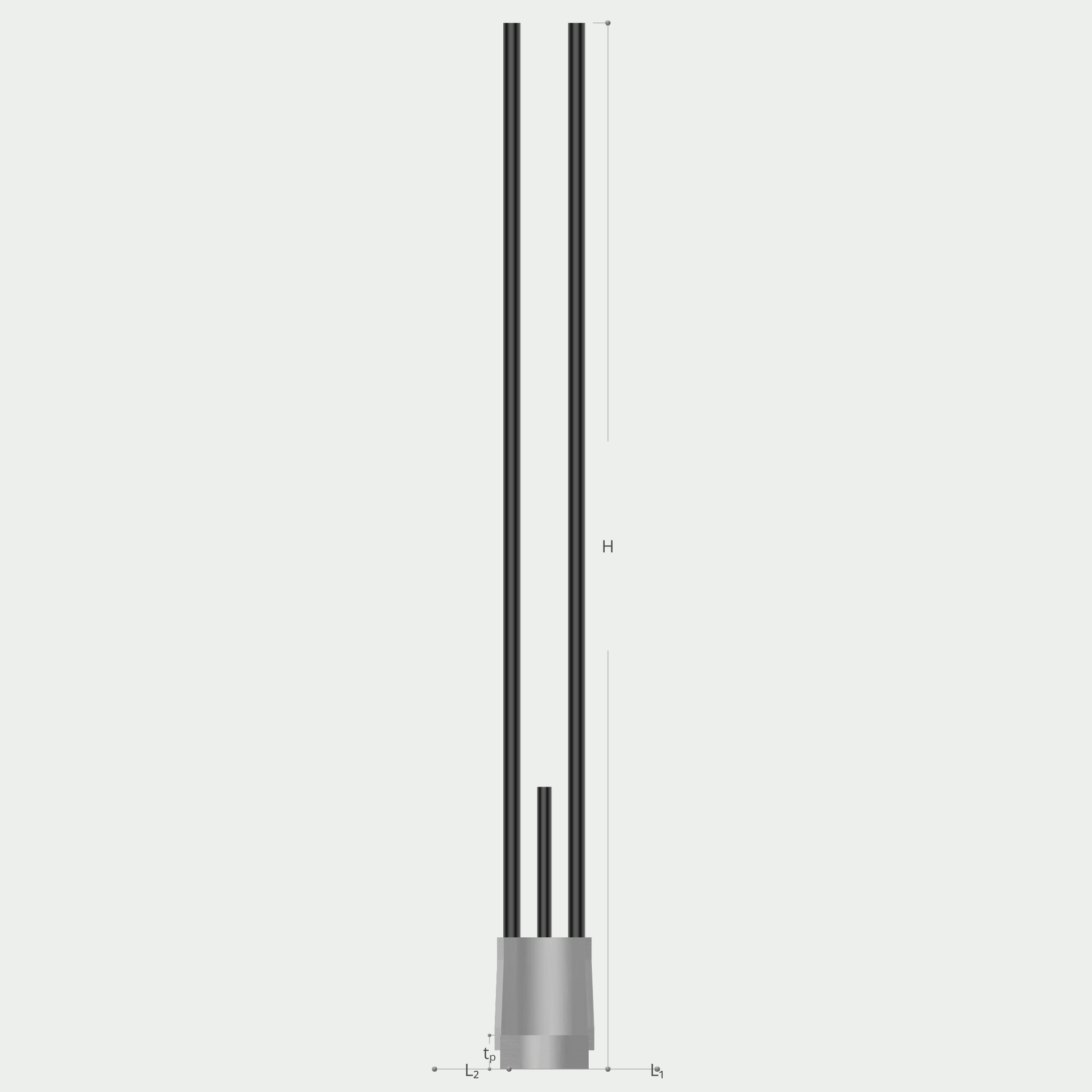

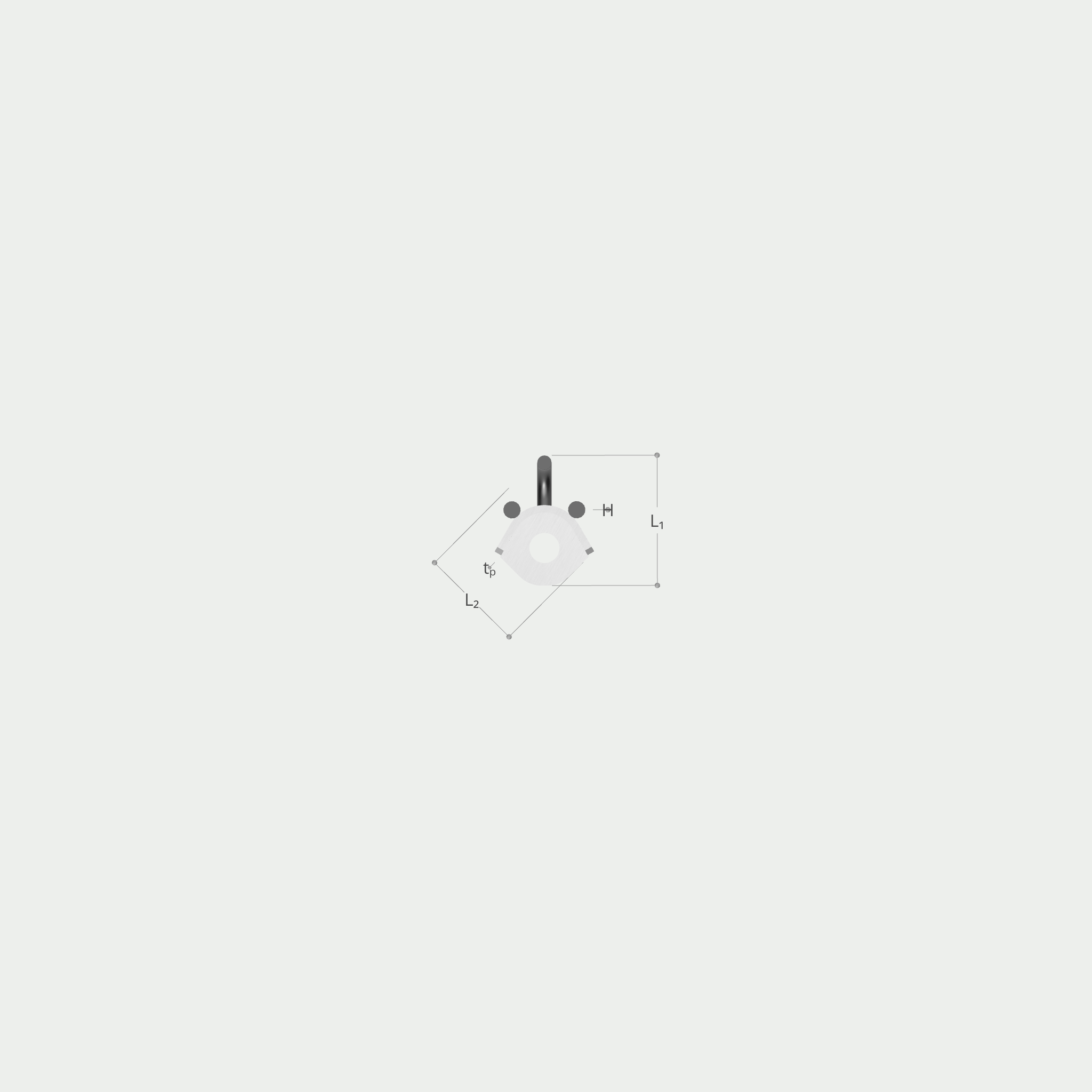

Geometry

360
Click to interact
1 of 5

SKU

H [mm]

Height

L₁ [mm]

Length

L₂ [mm]

Length

tₚ [mm]

Bottom plate thickness
NKK-M16
600
124
104
15
NKK-M20
820
130
108
20
NKK-M24
1185
140
116
30
NKK-M30
1390
169
137
45
NKK-M39
1910
221
177
50

Load Data

SKU

Installation stage

Final stage

NRd0, s [kN]

Tensile capacity

VRd0, s [kN]

Shear capacity

NRd, s [kN]

Tensile capacity

VRd, s [kN]

Shear capacity
NKK-M16
62
4
62
20
NKK-M20
97
8
97
31
NKK-M24
140
12.5
140
45
NKK-M30
220
24
220
71
NKK-M39
385
39
385
125
The NKK column shoe is designed to be compatible with NKP anchor bolts. If SKP anchor bolts are used with the NKK column shoe, the capacity will be limited to that of the NKK shoe, and the higher capacity of the SKP anchor bolts will not be fully utilised.
