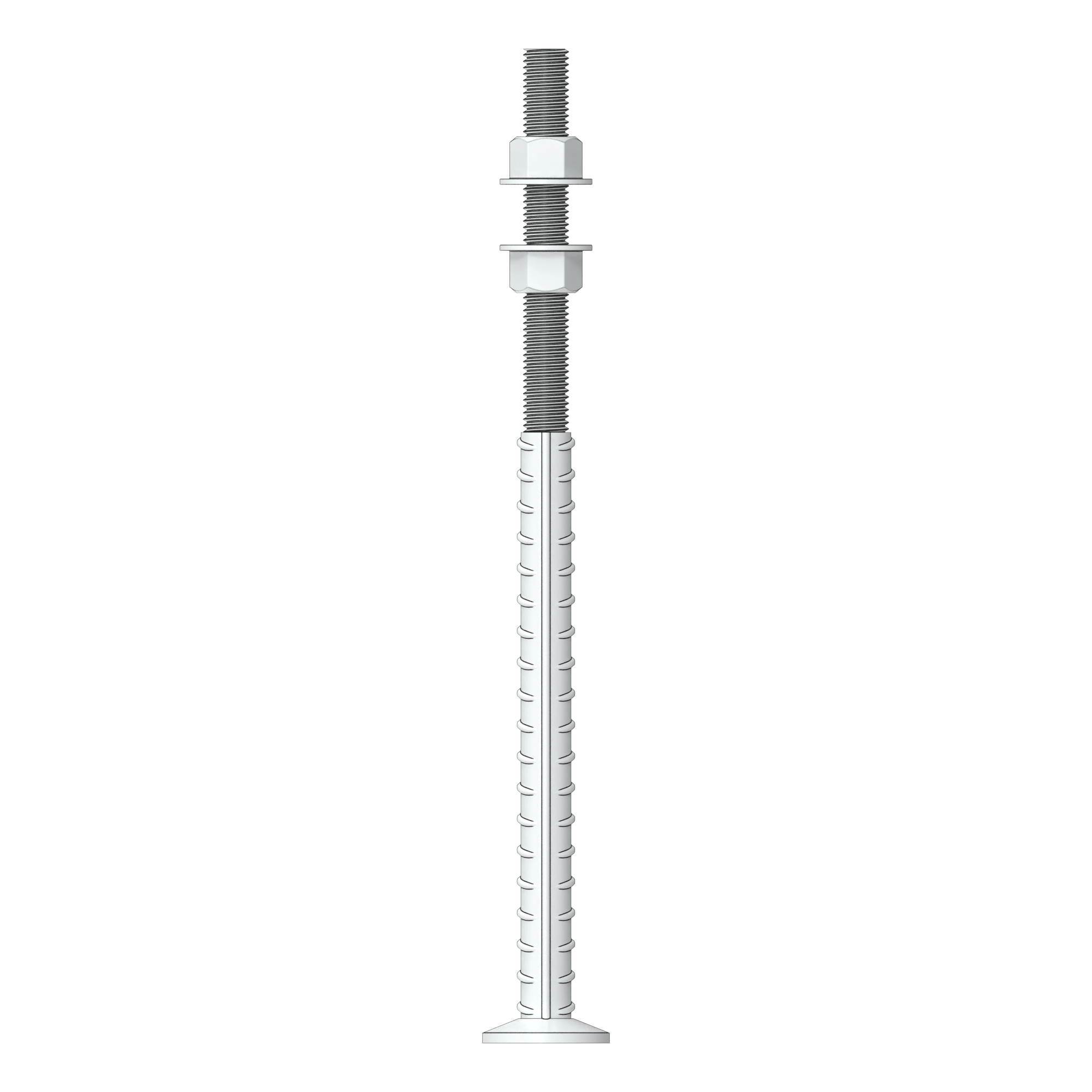

NKP–L Anchor Bolt
NKP-L
NKP-L Anchor Bolts: Secure concrete or steel structures with versatile, reliable anchoring for slabs and foundations. Ideal for low-depth applications.
Features
Load Transfer
Engineered for secure anchoring of steel components to precast concrete, ensuring high load transfer and long-term reliability.
Flexible Design Options
Available in bent (NKP-L) or straight (NKP-P) configurations to suit a range of structural and reinforcement requirements.
Corrosion-Resistant Finish
Hot-dip galvanised finish provides superior corrosion resistance for both interior and exterior applications.

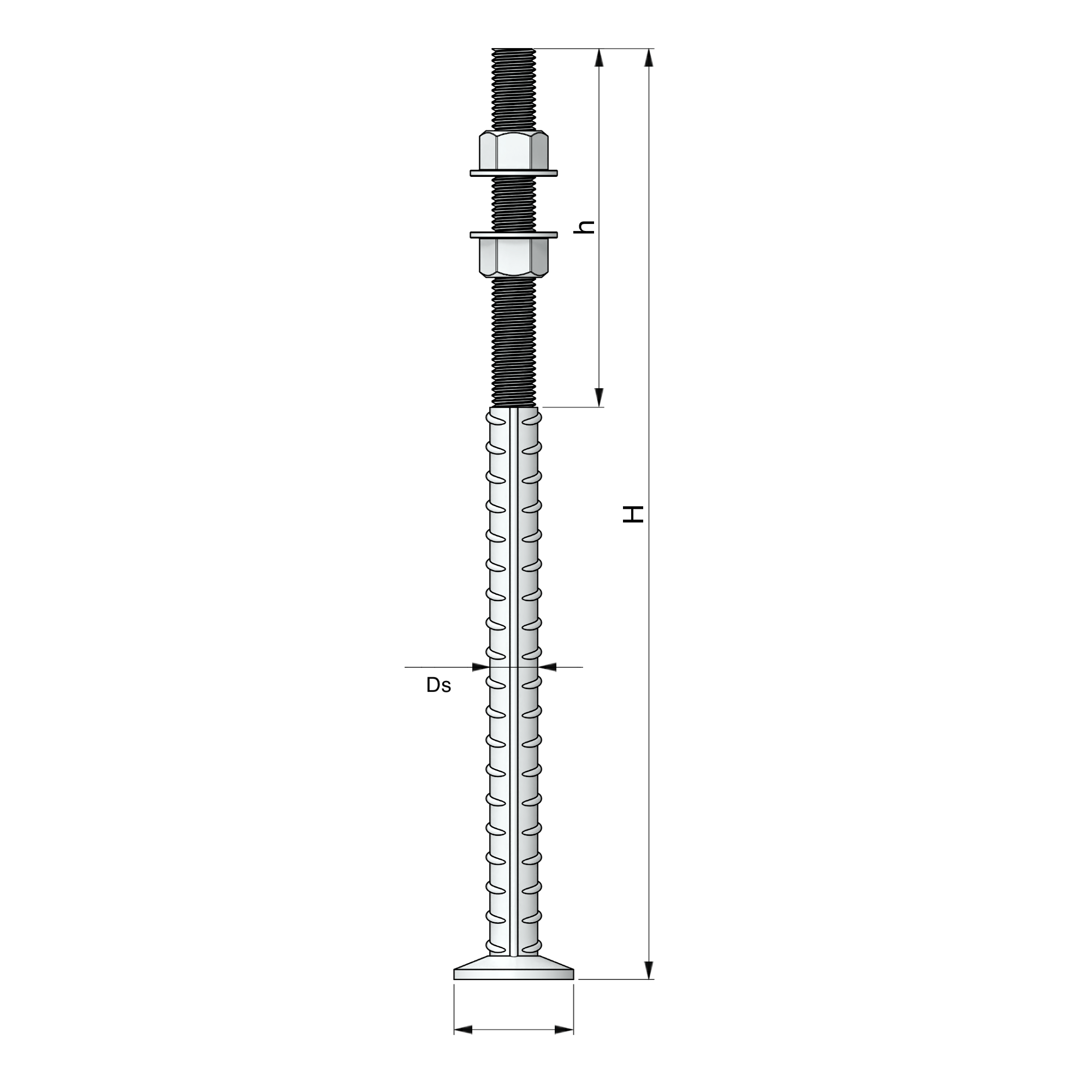

Geometry
Click to interact
NKP-L-M16
16
280
140
16
36
NKP-L-M20
20
350
140
20
46
NKP-L-M24
24
430
170
25
55
NKP-L-M30
30
500
190
32
70
NKP-L-M39
39
700
200
40
90
Minimum Installation Parameters
Click to interact
NKP-L-M16
270
50
165
85
80
NKP-L-M20
330
70
225
85
100
NKP-L-M24
395
70
290
85
100
NKP-L-M30
445
100
340
85
130
NKP-L-M39
610
130
505
85
150
Load Data
NKP-L-M16
62
4
62
20
NKP-L-M20
97
8
97
31
NKP-L-M24
140
12.5
140
45
NKP-L-M30
220
24
220
71
NKP-L-M39
385
39
385
125
The table shows steel resistances for anchor bolts.
