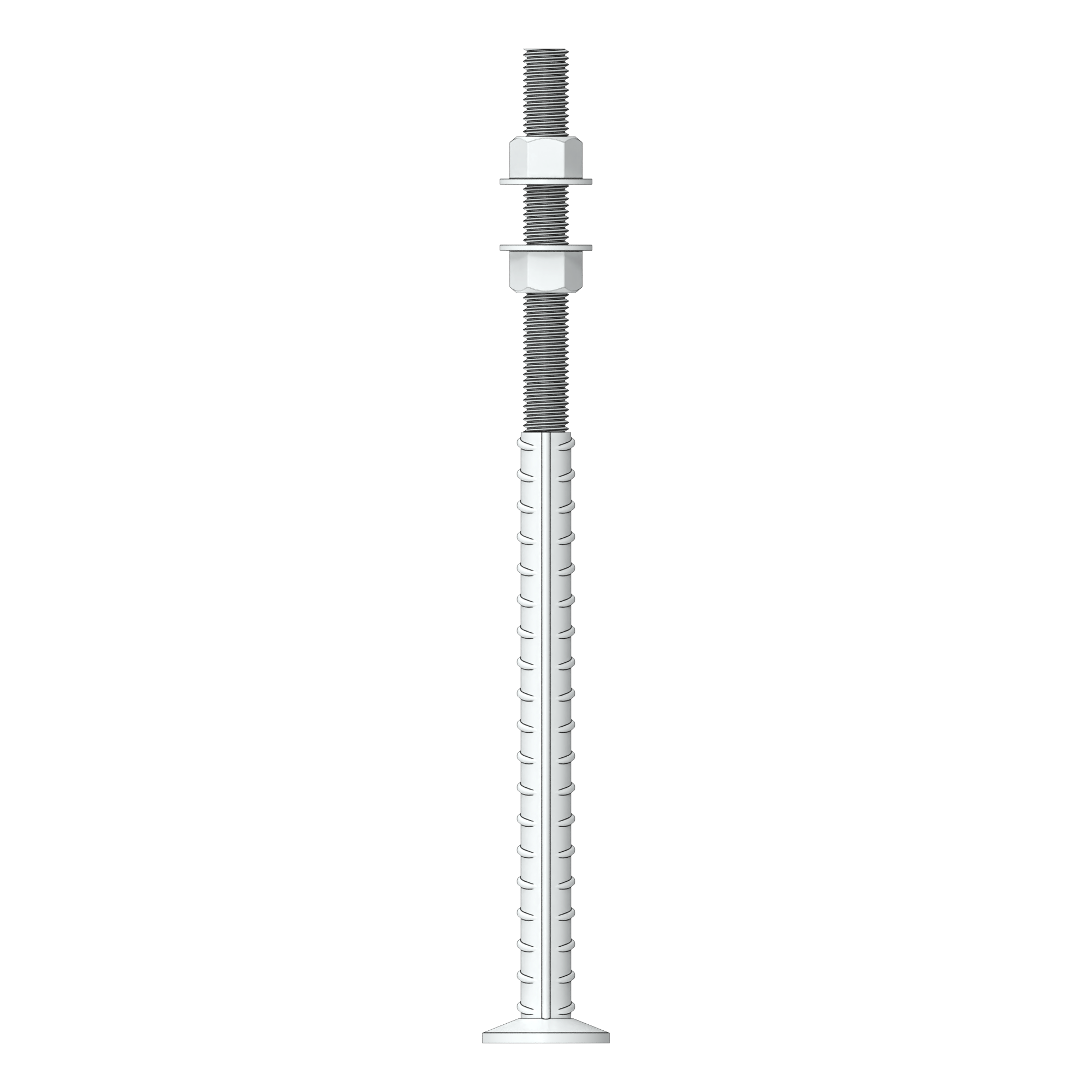

NKP–P Anchor Bolt
NKP-P
NKP-P bolts are ideal for taller precast elements like columns and walls, offering secure load transfer and corrosion-resistant performance.
Features
Load Transfer
Engineered for secure anchoring of steel components to precast concrete, ensuring high load transfer and long-term reliability.
Flexible Design Options
Available in bent (NKP-L) or straight (NKP-P) configurations to suit a range of structural and reinforcement requirements.
Corrosion-Resistant Finish
Hot-dip galvanised finish provides superior corrosion resistance for both interior and exterior applications.

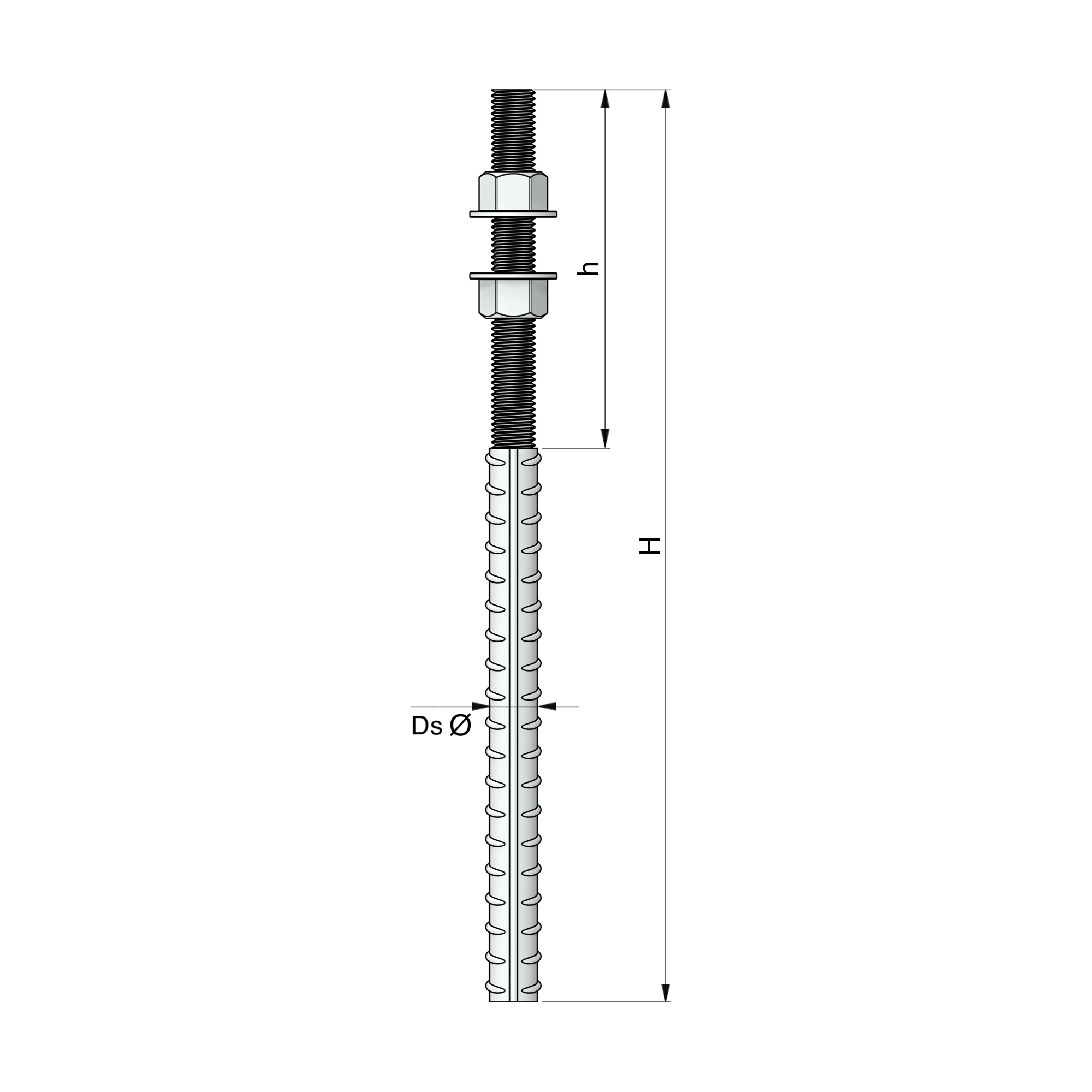

Geometry
NKP-P-M16
16
810
140
16
Yellow
NKP-P-M20
20
960
140
20
Blue
NKP-P-M24
24
1160
170
25
Grey
NKP-P-M30
30
1460
190
32
Green
NKP-P-M39
39
2000
200
40
Orange
Load Data
NKP-P-M16
62
4
62
20
NKP-P-M20
97
8
97
31
NKP-P-M24
140
12.5
140
45
NKP-P-M30
220
24
220
71
NKP-P-M39
385
39
385
125
Table shows steel resistances for anchor bolts.
