NSK Wall Shoe
NSK
NSK Wall shoes are widely used to achieve tensile connection between wall and foundation or two walls.
Features
Less temporary supports
Reduced need for temporary supports creating a simple install process.
More tolerance for installation
Faster and easier adjustment of walls in installation in vertical direction and lining.
Reusable connection
A bolted connection offers enhanced potential for reusing elements in a circular economy.

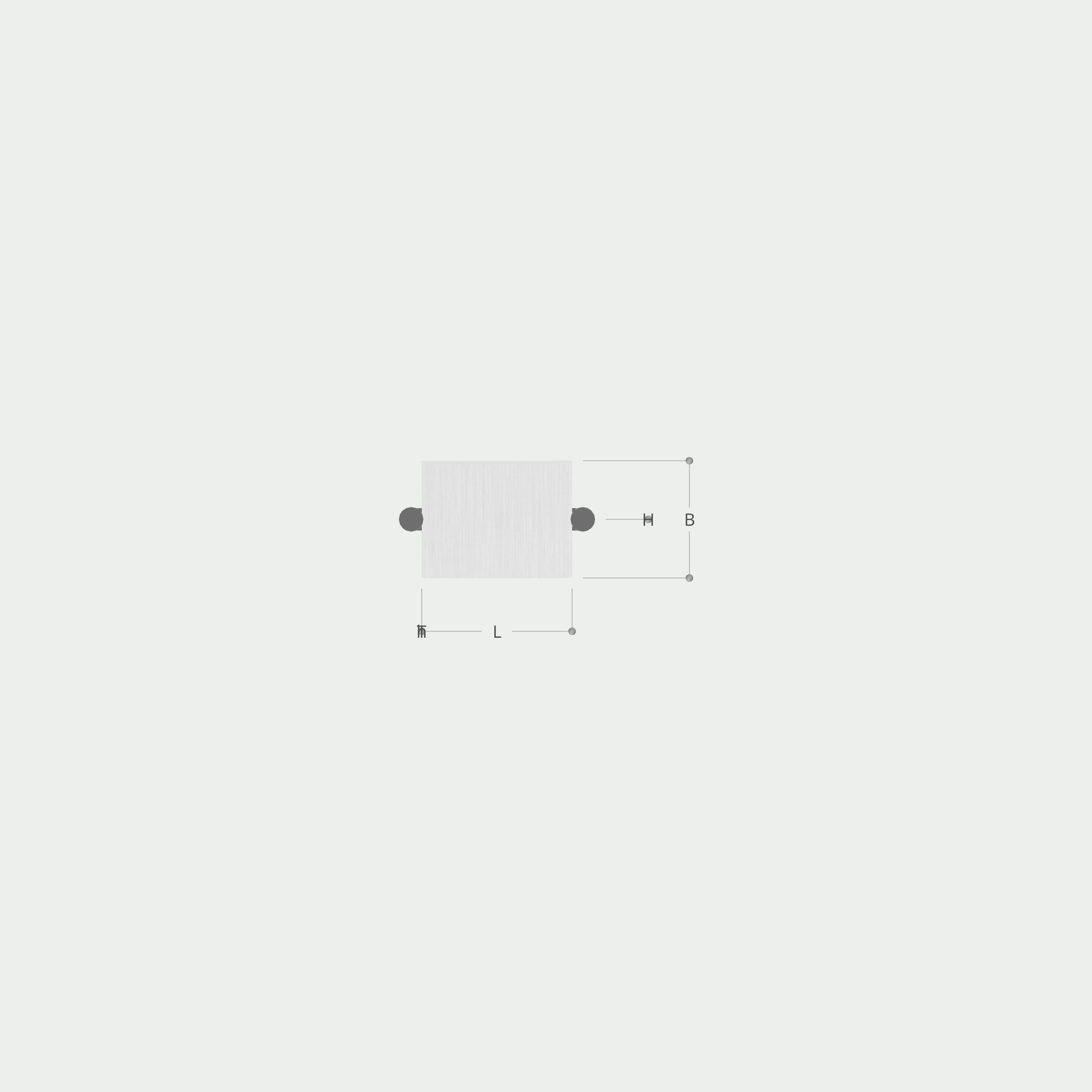

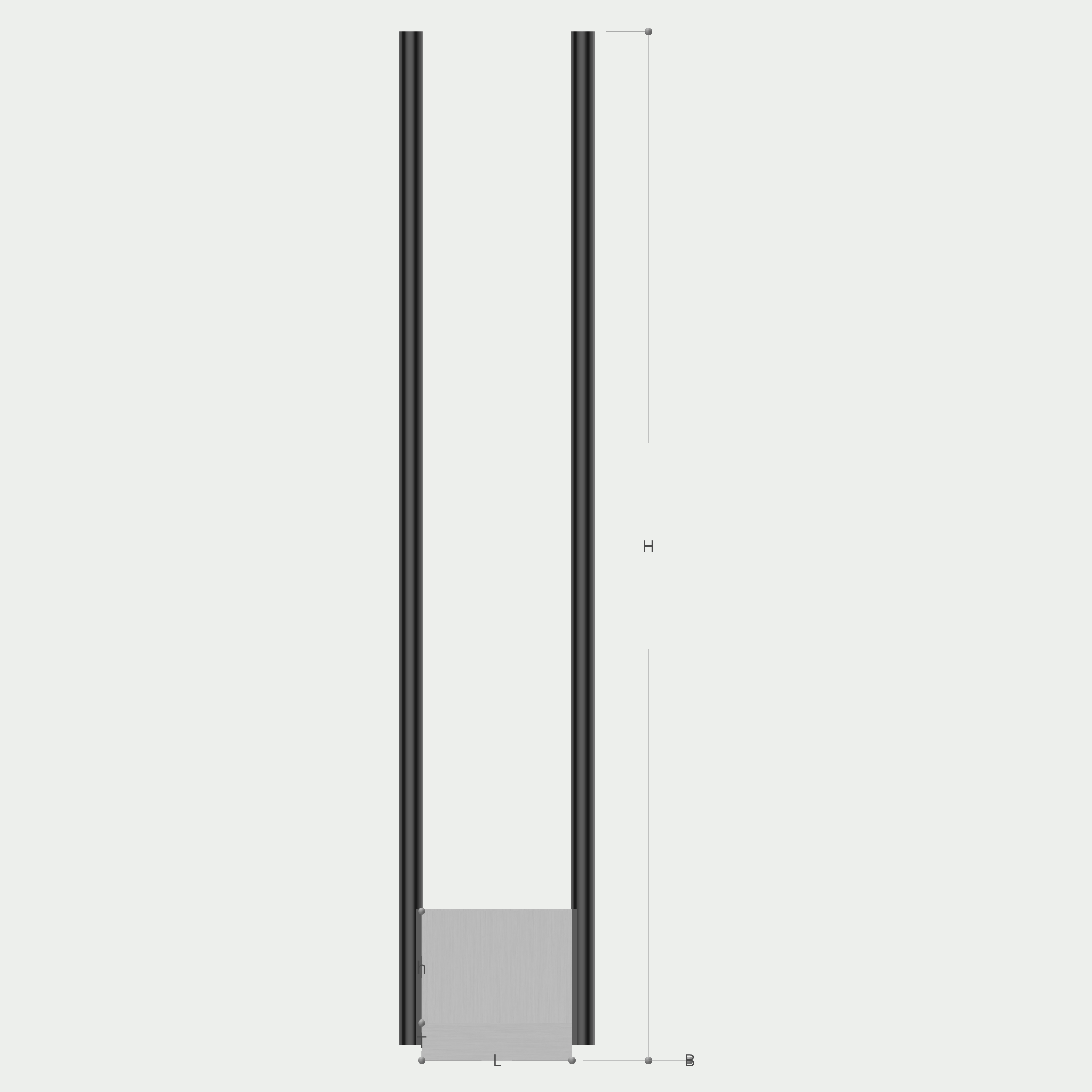

Geometry
Click to interact
NSK-M16
630
80
119
80
30
NSK-M20
800
90
124
90
35
NSK-M24
965
110
129
105
35
NSK-M30
1130
120
144
115
40
NSK-M39
1600
145
165
140
50
Load Data
NSK-M16
90
39
140
220
62
NSK-M20
90
37
150
240
97
NSK-M24
110
45
160
250
140
NSK-M30
120
47
170
280
220
NSK-M39
145
56
200
320
385
*with extra protective measures. Please contact CFS to confirm.
Materials
Reinforcement bars
Rebar
EN10080:2006
