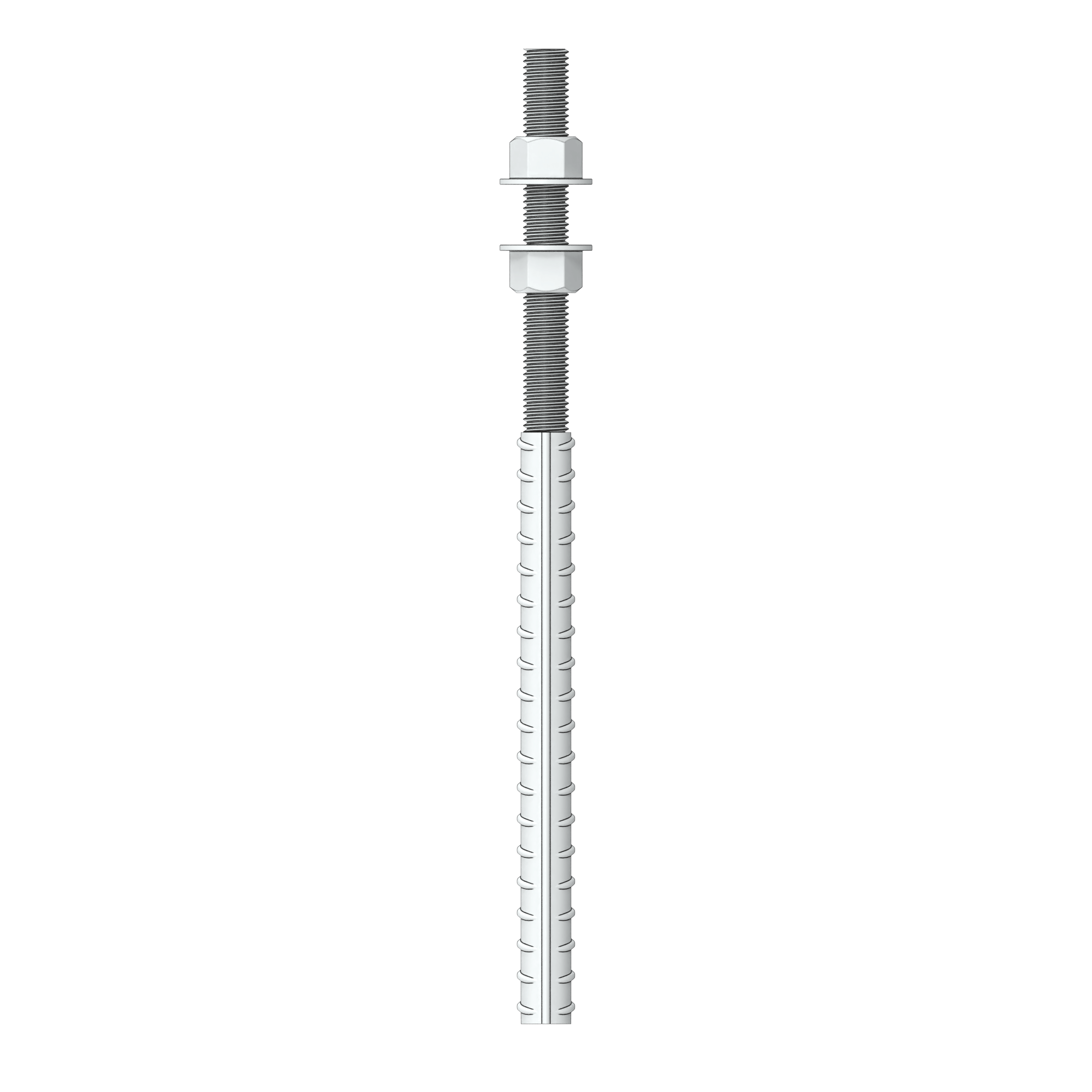

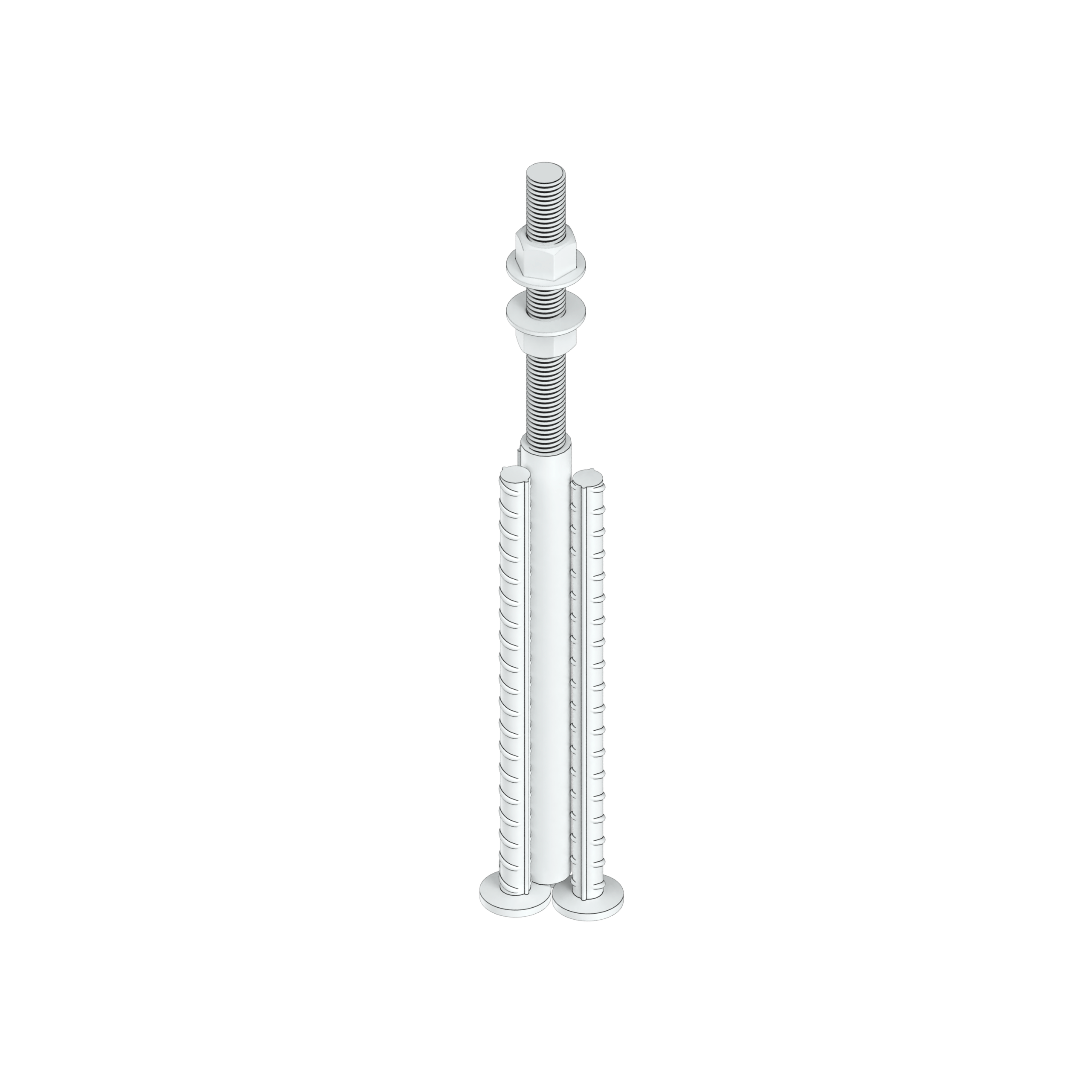

SKP–L Anchor Bolt
SKP-L
Anchor bolts are ideal for low-depth structures like slabs and foundations. Achieve anchorage through concrete-rebar bond.
Features
High capacity
Optimised for high load transfer, increasing overall connection strength and performance.
Less temporary supports
Reduced need for temporary supports creating a simple install process.
Corrosion-Resistant Finish
Hot-dip galvanised finish provides superior corrosion resistance for both interior and exterior applications.

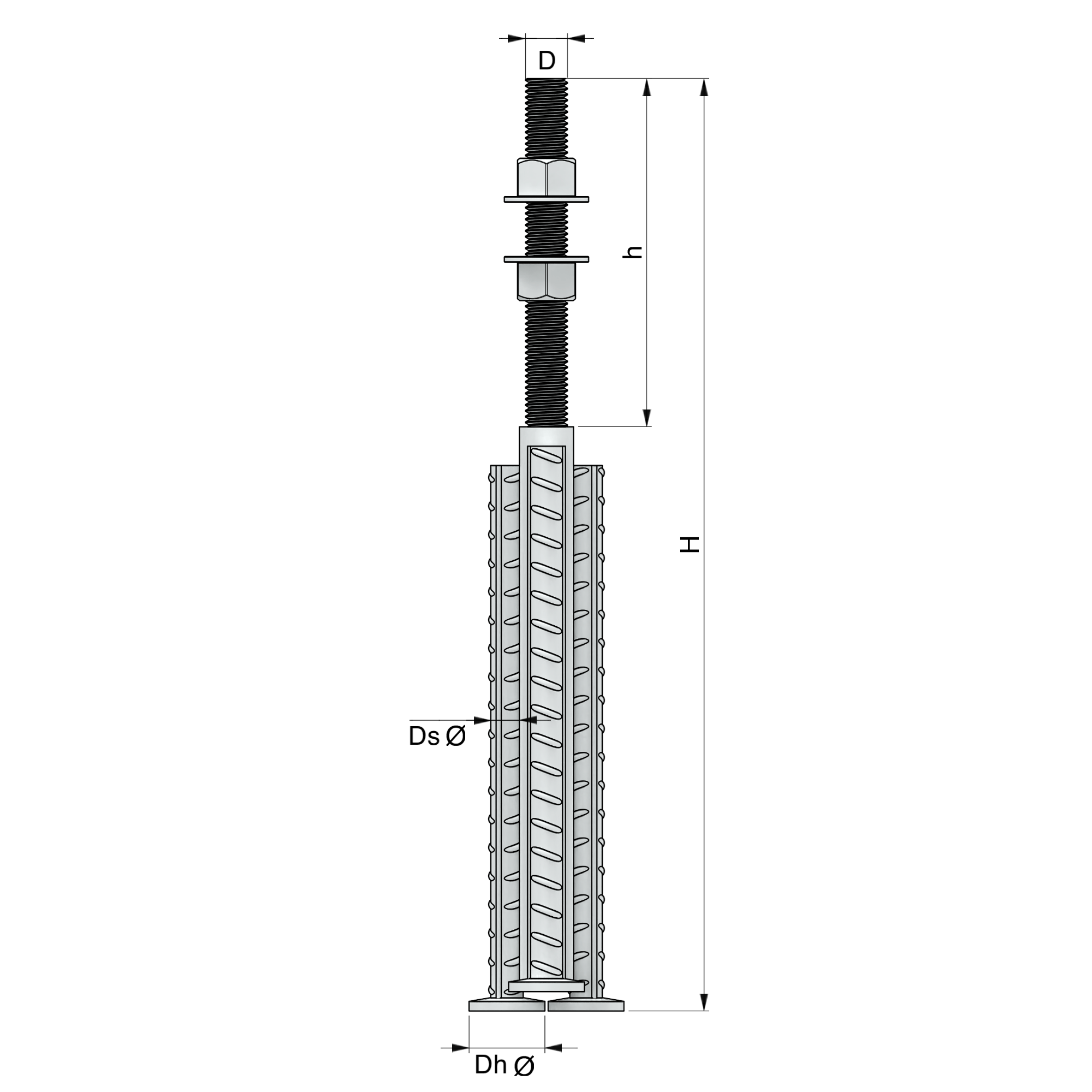

Geometry
SKP-L-M30
30
670
190
25
2
55
SKP-L-M36
36
740
190
20
4
46
SKP-L-M39
39
880
200
25
3
55
SKP-L-M45
45
990
220
25
4
55
SKP-L-M52
52
1140
250
32
4
70
SKP-L-M60
60
1330
310
32
4
70

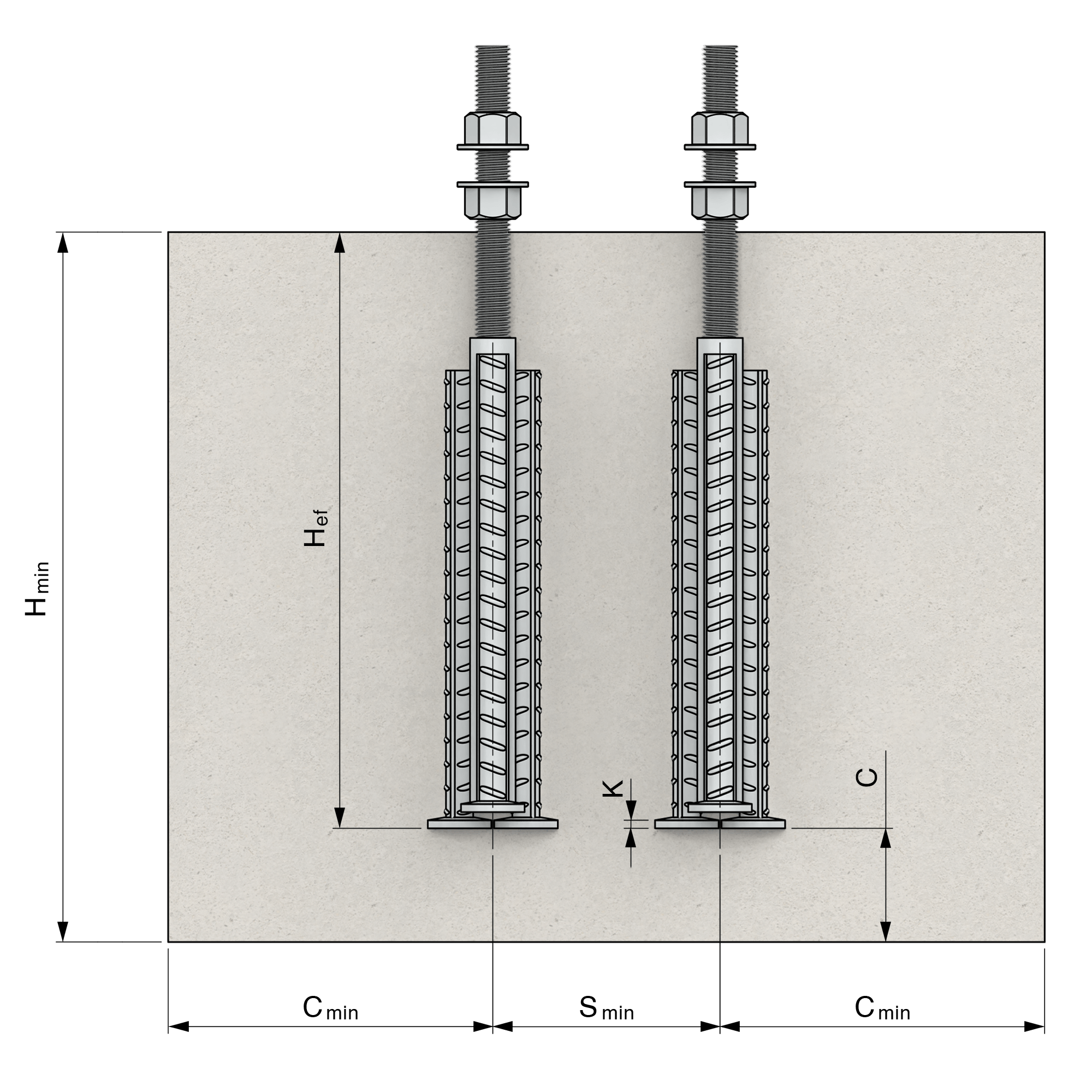

Minimum Installation Parameters
SKP-L-M30
600
120
505
85
130
SKP-L-M36
665
140
562
85
160
SKP-L-M39
780
150
680
85
180
SKP-L-M45
865
160
764
85
200
SKP-L-M52
990
180
890
85
280
SKP-L-M60
1155
180
1057
85
280
Load Data
SKP-L-M30
299
32
299
71
SKP-L-M36
435
50
435
103
SKP-L-M39
520
59
520
124
SKP-L-M45
695
82
695
165
SKP-L-M52
938
119
938
219
SKP-L-M60
1260
162
1260
225
Table shows steel resistances for anchor bolts.
