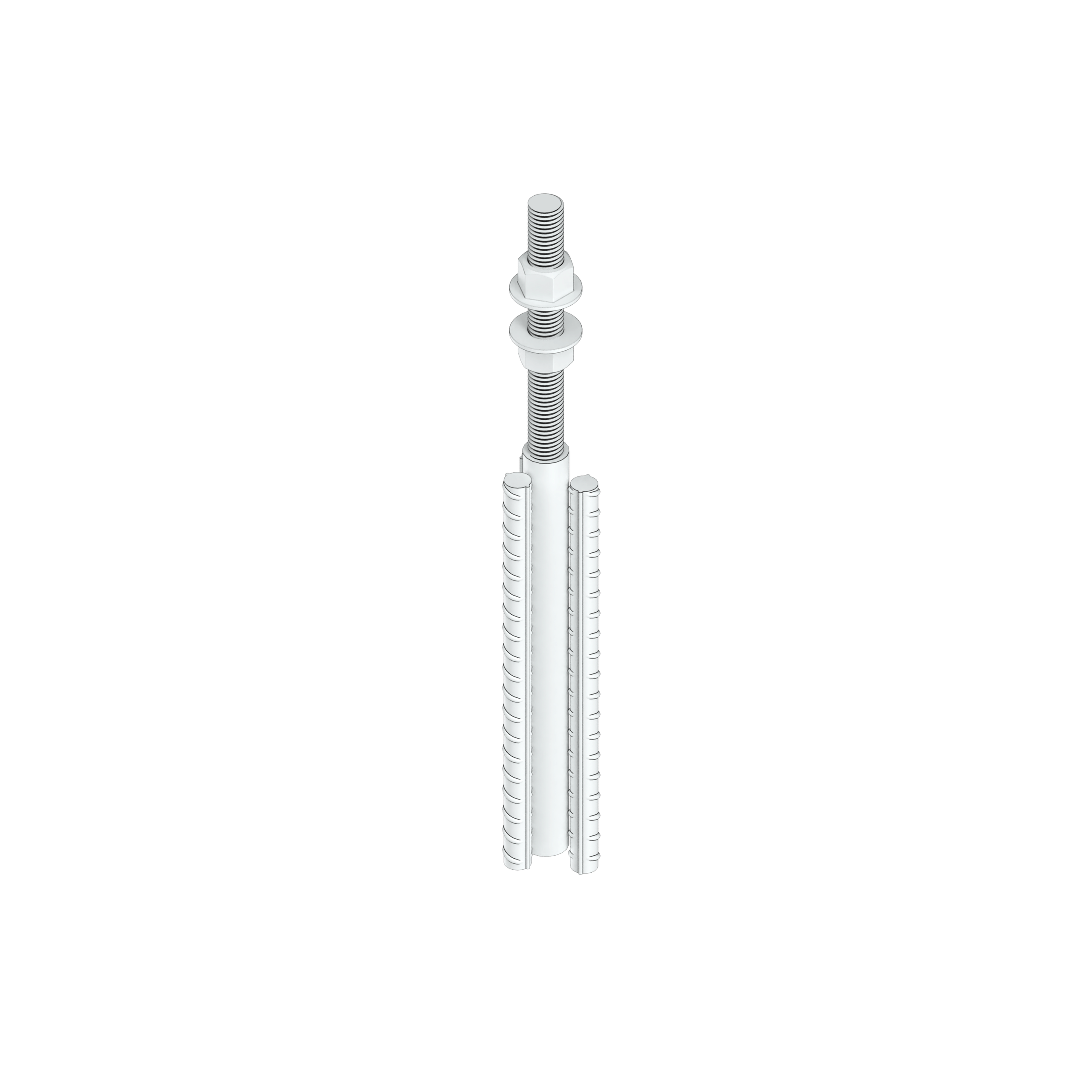

SKP–P Anchor Bolt
SKP-P
Anchor bolts with straight end for walls, columns, and poles. Achieve anchorage via concrete-rebar bond. Ideal for long structures.
Features
Long Anchorage
High capacity due to increased anchorage in concrete.
Less temporary supports
Reduced need for temporary supports creating a simple install process.
High capacity
Optimised for high load transfer, increasing overall connection strength and performance.

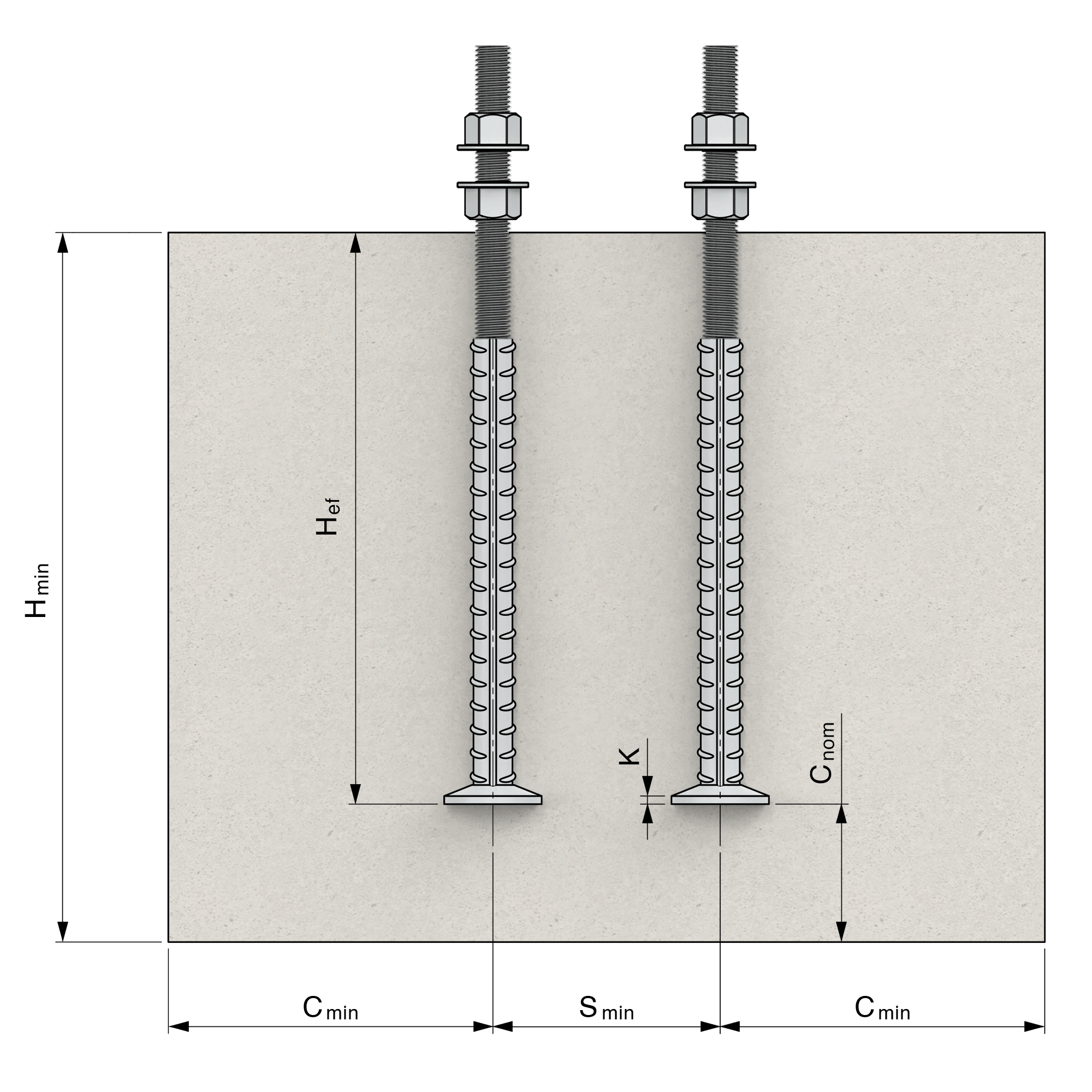

Geometry
SKP-P-M30
30
1705
190
25
2
SKP-P-M36
36
1370
190
20
4
SKP-P-M39
39
1710
200
25
3
SKP-P-M45
45
1720
220
25
4
SKP-P-M52
52
1860
250
32
4
SKP-P-M60
60
2390
310
32
4
Load Data
SKP-P-M30
50
80
299
32
299
71
SKP-P-M36
55
91
435
50
435
103
SKP-P-M39
60
99
520
59
520
124
SKP-P-M45
65
110
695
82
695
165
SKP-P-M52
70
122
938
119
938
219
SKP-P-M60
80
140
1260
162
1260
225
Table shows steel resistances for anchor bolts.
