Reveal Plate

CFS-REVEAL

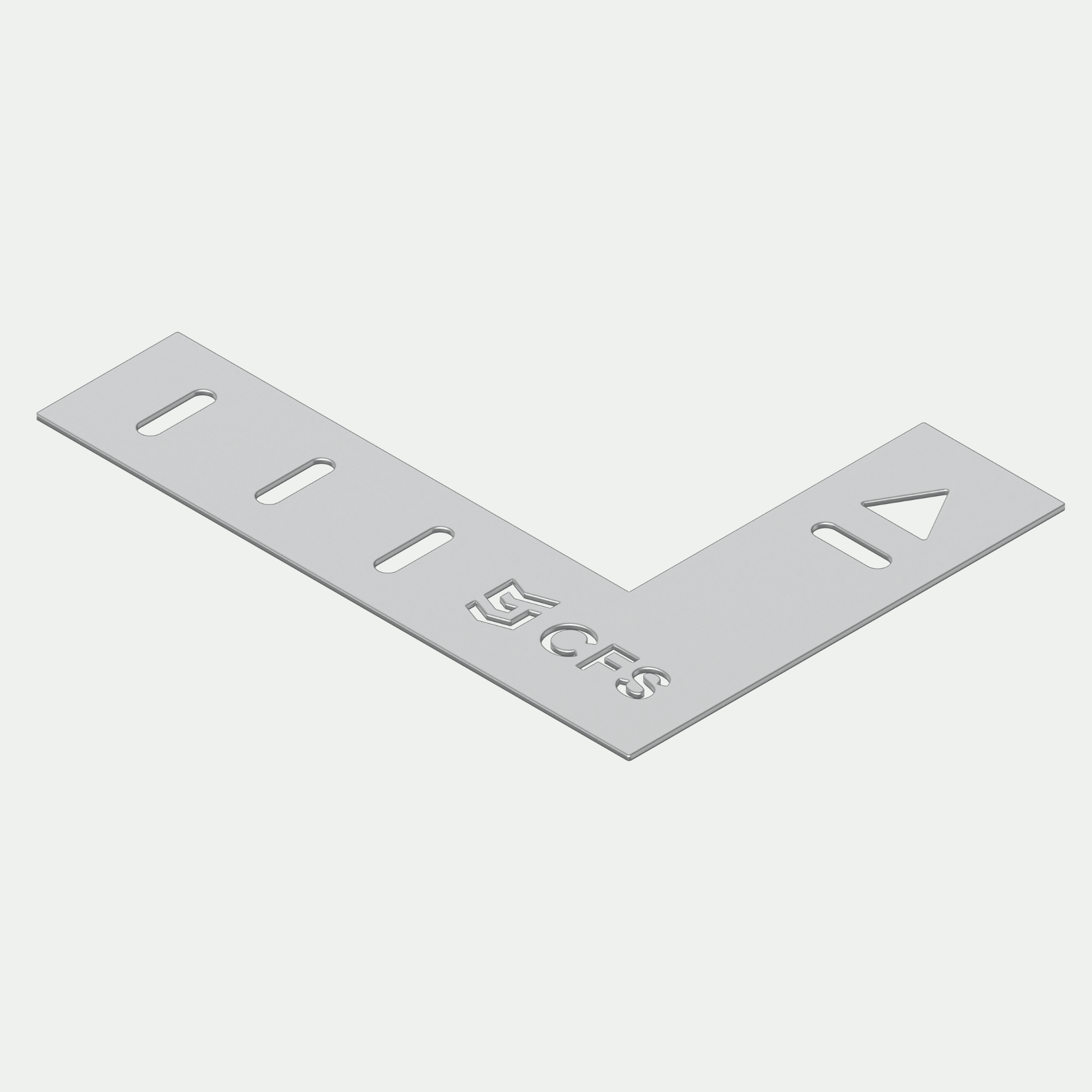

Our brickwork reveal plates are designed to support the first couple of bricks in a full brick or brick-and-a-half (215mm and 327.5mm) window reveal.

Features

A1 Material

Made from stainless steel A1 fire-rated material.

Simple Installation

Product is quick and easy to install

Flexible Use

Suitable for bonded brick patterns

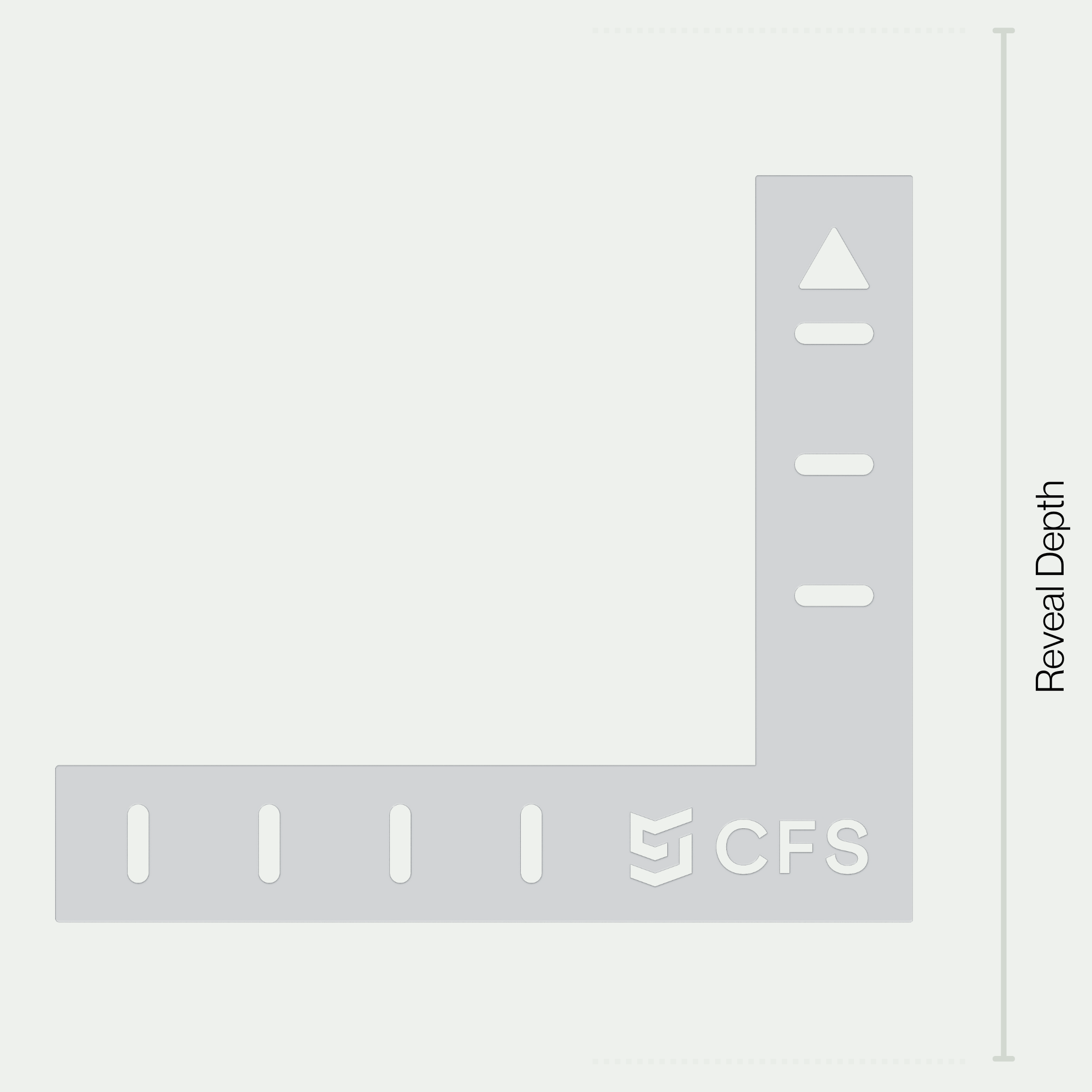

Geometry

Expand

SKU

h [mm]

Reveal Depth

CFS-REVEAL-215

215

CFS-REVEAL-327.5

327.5

304/304L austenitic stainless steel or 316/316L on request. A1 fire-rated non-combustible material. Maximum applied load of 0.15kN as standard. Bespoke sizes available to accommodate different wall thicknesses and design requirements.

Resources

Technical Data Sheet

Reveal Plates Technical Datasheet

PDF

0.53mb

0.53mb
