ProLock Brick Slip Soffits and Lintels
1 of 2

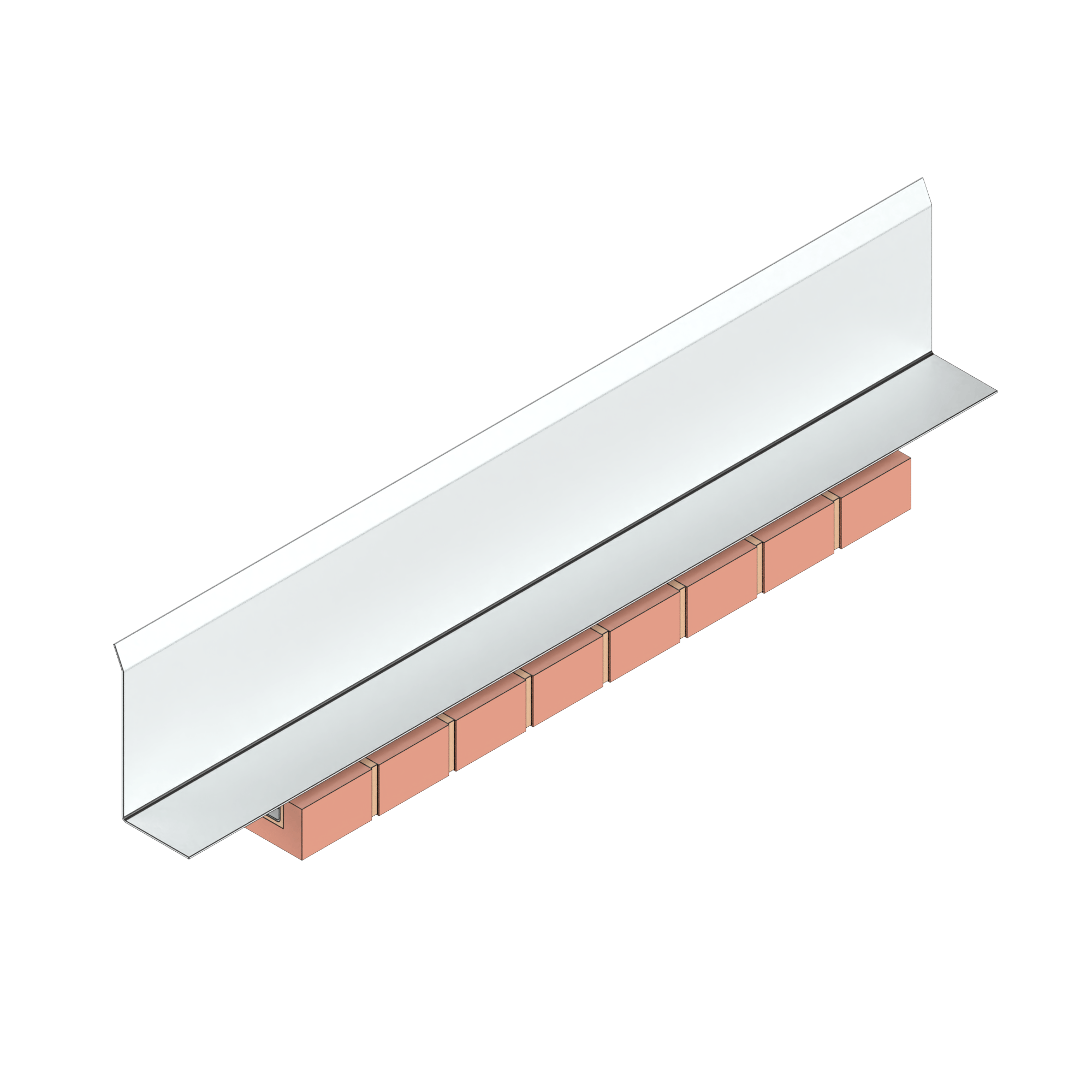

Header Bond Lintel Unit L
PS/L/H
The Fab-Lite Facades Stretcher Bond Lintel Range allows openings in a masonry's single leaf with an integrated brick slip soffit bonded seamlessly with resin. CFS L Shaped Header Bond Lintel Unit offers a seamless soffit with flexible design and bonding options.
Features
Bolt Up
The system is mechanically secured ensuring maximum stability and durability. This provides exceptional resistance to external forces and long-term performance
Easy Installation
CFS Brick-faced Soffits and Lintels simply lift into position with no need for mechanical lifting, attaching to the slots in our Masonry Support system with ease.
Secure and Durable Design
Every Brick Slip is mechanically fixed and bonded using A2 fire resistant epoxy resin for ultimate security.
Geometry
PS/L/H/215
2100
215
65
102.5
Maximum depth is 215 steps plus 10mm mortar joint. Full fill bricks only. Maximum depth is 215 steps plus 10mm mortar joint.
Materials
Tray
Stainless steel
Austenitic Stainless Steel in Grade 304 (1.4301) 316 (1.4404). BS EN 845, BS EN 846-2 and BS 5977 and are CE marked.
Resources
Related products
ProLock Brick Slip Soffits and Lintels
Solider Bond Lintel Unit
ProLock Brick Slip Soffits and Lintels
Stretcher Bond Soffit Bolt Up
ProLock Brick Slip Soffits and Lintels
Stretcher Bond Lintel Unit L
ProLock Brick Slip Soffits and Lintels
Soldier Bond Soffit Bolt Up
ProLock Brick Slip Soffits and Lintels

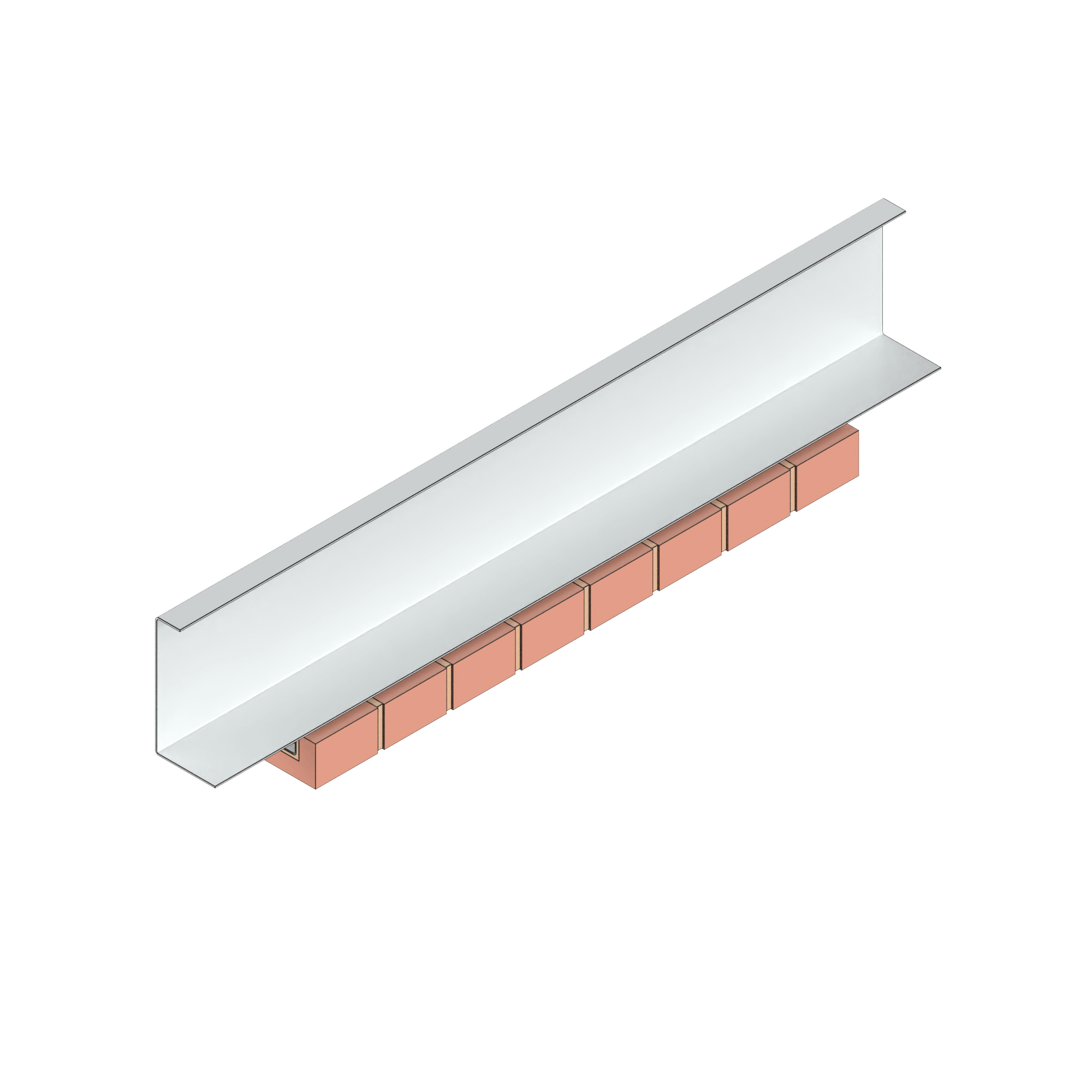

Header Bond Lintel Unit C
