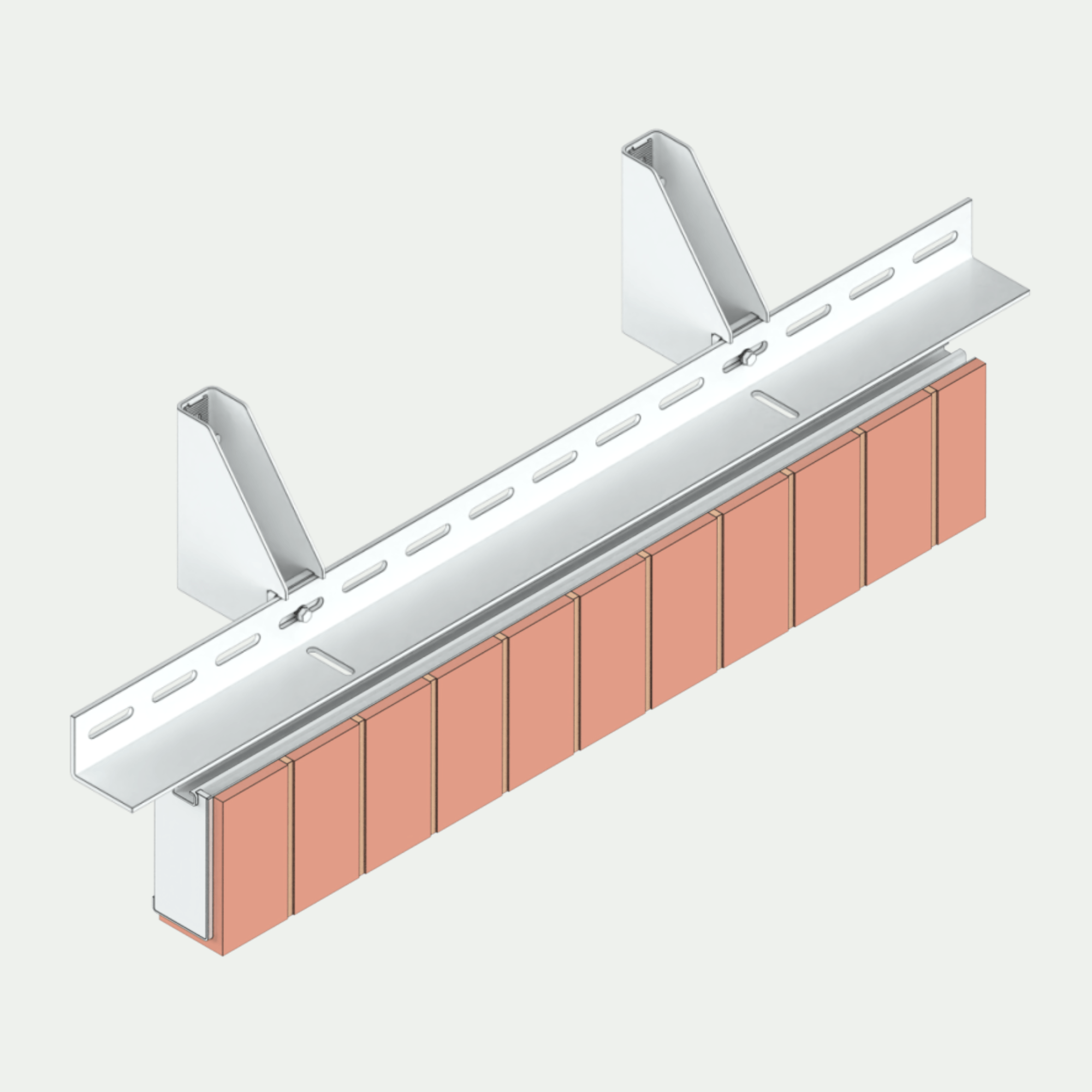

Soldier Bond Soffit Bolt Up

PS/S

Pro-Steel Soffit bolt-ups are lightweight, non-structural components that attach to the Masonry Support system, allowing diverse hanging brick designs.

Features

Arrow Up

Bolt Up

The system is mechanically secured ensuring maximum stability and durability. This provides exceptional resistance to external forces and long-term performance
Hammer

Easy Installation

CFS Brick-faced Soffits and Lintels simply lift into position with no need for mechanical lifting, attaching to the slots in our Masonry Support system with ease.
Lock Simple

Secure and Durable Design

Every Brick Slip is mechanically fixed and bonded using A2 fire resistant epoxy resin for ultimate security.

Geometry

SKU

L [mm]

Max Length

h [mm]

Depth Max

H [mm]

High

B [mm]

Brick Width
PS/S/102.5
890
102.5
215
65
PS/S/215
890
215
215
65
PS/S/327.5
665
327.5
215
65

Materials

Component

Material

Description

Tray
Stainless steel
Austenitic Stainless Steel in Grade 304 (1.4301) 316 (1.4404). BS EN 845, BS EN 846-2 and BS 5977 and are CE marked.

Resources

ProLock Soffits Category Brochure

PDF
3.34mb
Download Simple
