ProLock Brick Slip Soffits and Lintels
1 of 2

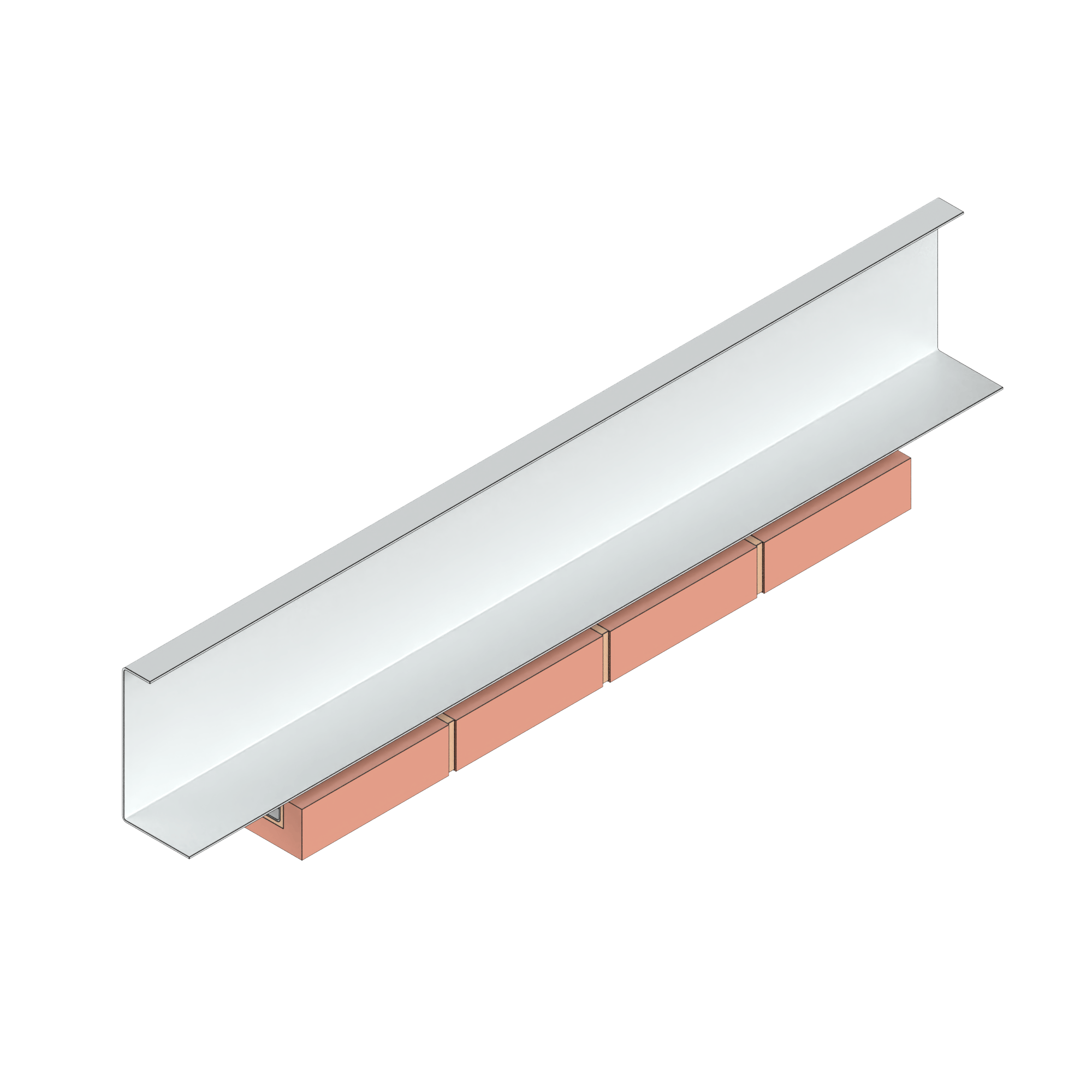

Stretcher Bond Lintel Unit C
PS/C/ST
The Fab-Lite Facades Stretcher Bond Lintel Range allows openings in a masonry's single leaf with an integrated brick slip soffit bonded seamlessly with resin. The Stretcher Bond Lintel creates openings with a bonded brick slip soffit, concealing steel and enhancing window features.
Features
Bolt Up
The system is mechanically secured ensuring maximum stability and durability. This provides exceptional resistance to external forces and long-term performance
Easy Installation
CFS Brick-faced Soffits and Lintels simply lift into position with no need for mechanical lifting, attaching to the slots in our Masonry Support system with ease.
Secure and Durable Design
Every Brick Slip is mechanically fixed and bonded using A2 fire resistant epoxy resin for ultimate security.
Geometry
PS/C/ST/102.5
3000
102.5
65
215
PS/C/ST/215
3000
215
65
215
Materials
Tray
Stainless steel
Austenitic Stainless Steel in Grade 304 (1.4301) 316 (1.4404). BS EN 845, BS EN 846-2 and BS 5977 and are CE marked.
