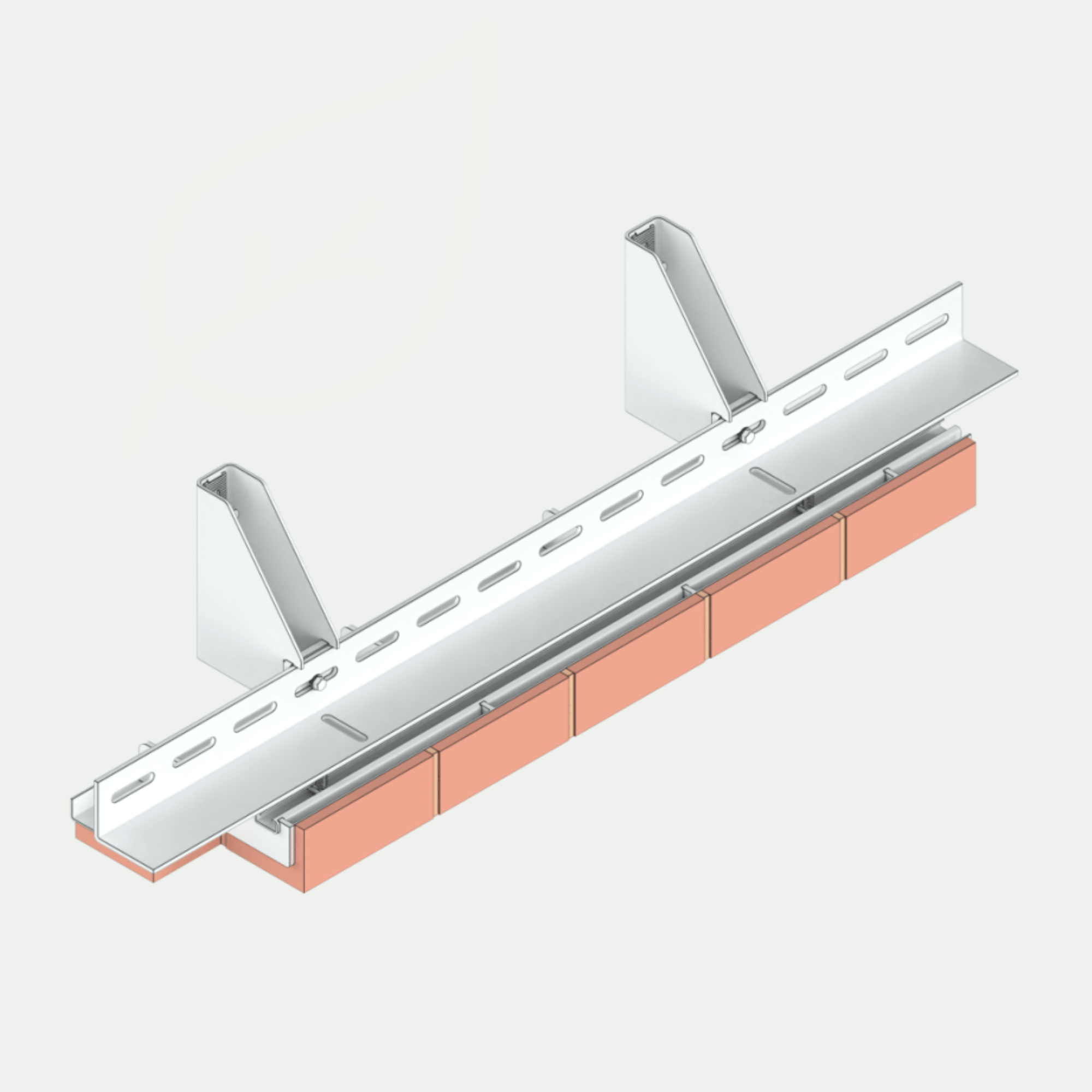

a drawing of a brick wall with a metal bracket attached to it
1 of 2
All Products

Stretcher Bond Soffit Bolt Up

PS/ST

Pro-Steel Soffit bolt-ups are lightweight, non-structural components that attach to the Masonry Support system, allowing diverse hanging brick designs.

Features

Arrow Up

Bolt Up

The system is mechanically secured ensuring maximum stability and durability. This provides exceptional resistance to external forces and long-term performance
Hammer

Easy Installation

CFS Brick-faced Soffits and Lintels simply lift into position with no need for mechanical lifting, attaching to the slots in our Masonry Support system with ease.
Lock Simple

Secure and Durable Design

Every Brick Slip is mechanically fixed and bonded using A2 fire resistant epoxy resin for ultimate security.

Geometry

SKU

L [mm]

Max Length

Depth Max [mm]

Depth

H [mm]

High
PS/ST/102.5
890
102.5
65
PS/ST/215
890
215
65
PS/ST/327.5
890
327.5
65
PS/ST/440
665
440
65
PS/ST/665
440
665
65
Depth Max of 102.5 steps is standard. 890mm is the maximum length provided. We do not recommend more than 327.5mm of depth due to product weight and ease of installation. The Stretcher Bond Soffit System features a keyed design, providing mechanical interlock between units to enhance stability and ensure alignment across the soffit span. If the Depth Max increases beyond 327.5mm we suggest the use of another Channel.

Materials

Component

Material

Description

Tray
Stainless steel
Austenitic Stainless Steel in Grade 304 (1.4301) 316 (1.4404). BS EN 845, BS EN 846-2 and BS 5977 and are CE marked.

Resources

ProLock Soffits Category Brochure

PDF
3.34mb
Download Simple
