Staircase Connector

CVS

Secure CVS Staircase Connectors for stable precast stairs, ISO 9001 certified, high load capacity, easy install.

Features

Hammer

Easy Installation

CFS Staircase Products offer easy installation on site with simple to apply additional reinforcement.
Barbell

High Load Capacity

Engineered for strength and stability, our high load capacity variants are ideal for heavy-duty construction use.
Belt

Robust and Durable

CFS Staircase Connectors are more durable than plastic formers, with a robust metal former available for fixing to timber or steel moulds including magnets.

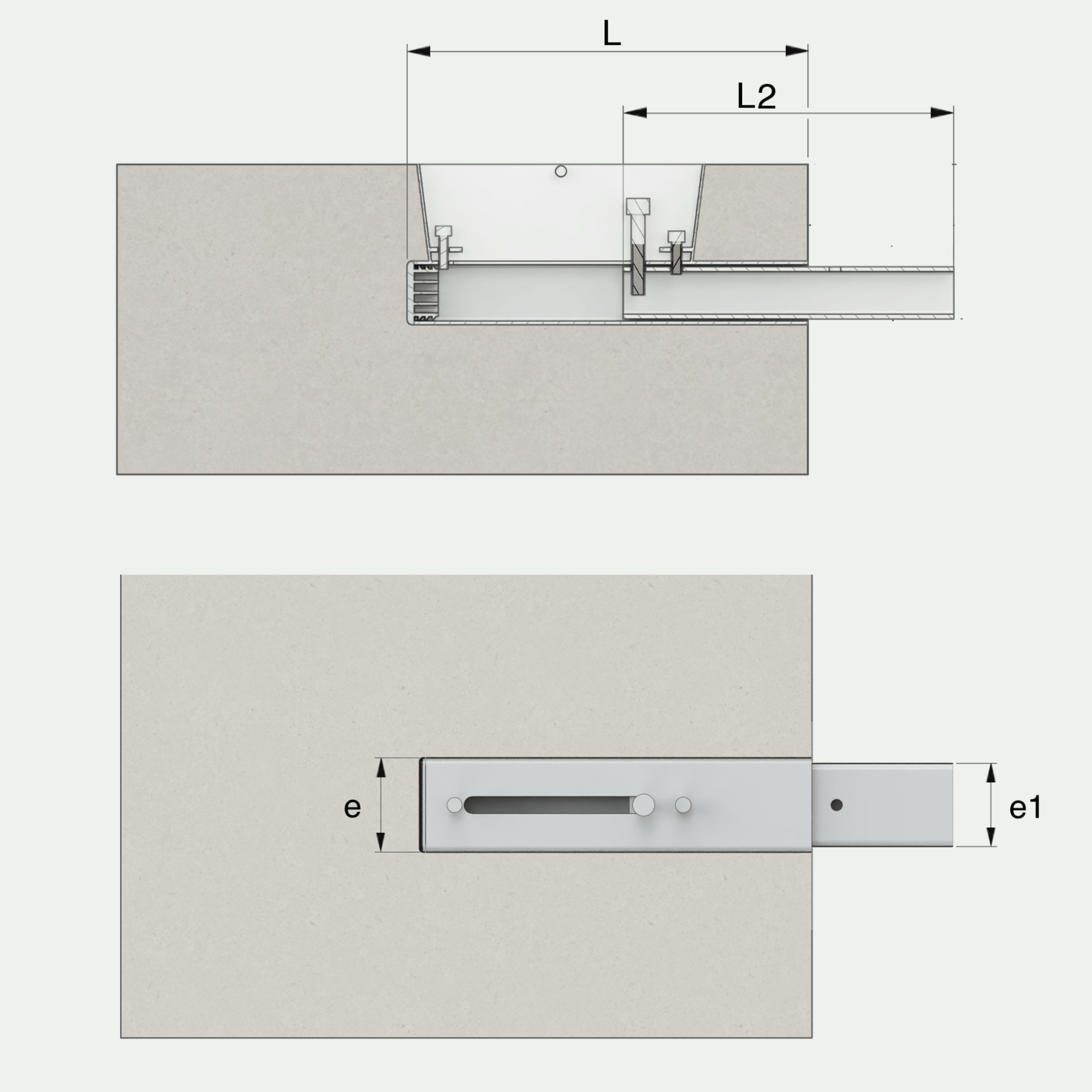

Geometry

a drawing of a piece of metal with the letters l and l2 on it

SKU

kN

Load range

L [mm]

Length

L2 [mm]

Length

e [mm]

Width

e1 [mm]

Width
CVS-40
40
300
250
80
70
CVS-60
60
320
270
90
80
CVS-100
100
350
300
120
100
Please see product brochure for full details.

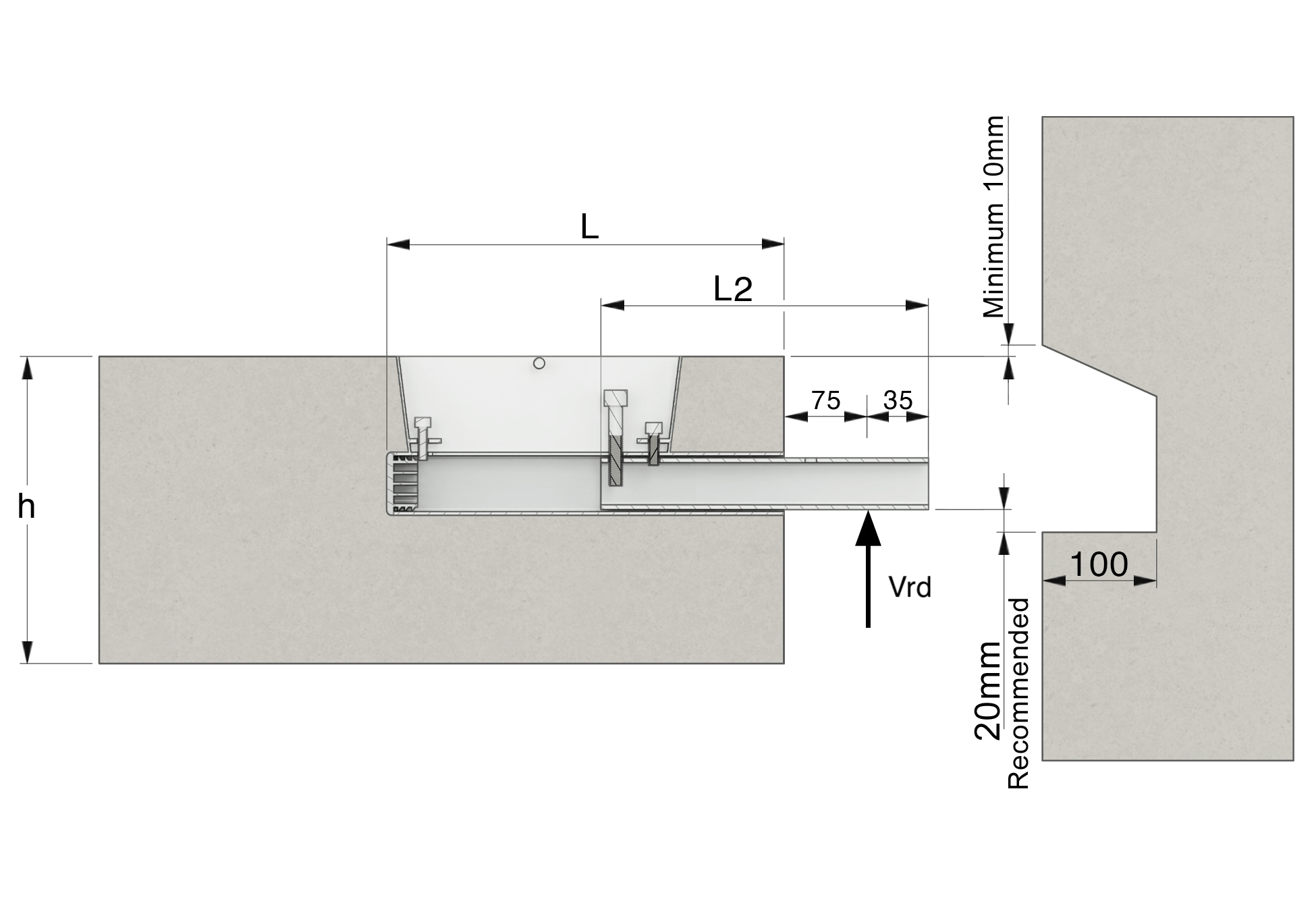

Load Data

a black and white drawing of a building with the number 100 at the bottom

SKU

h ≥ [mm]

Min. element thickness

VRd [kN]

Shear load C35/45

kN

Load range
CVS-40
150
43.9
40
175
41.5
40
200
40.3
40
CVS-60
175
62.3
60
200
53.7
60
CVS-100
200
100
100
250
100
100
Please see product brochure for full details.

Materials

Component

Material

Description

Connector
Steel
Steel according to EN 10305
