Staircase Former

CVS FORMER

CVS Staircase Former secures the Connector in precast molds, forming a concrete pocket for easy Connector removal. Ideal for efficient stair construction.

Features

Hammer

Easy Installation

CFS Staircase Products offer easy installation on site with simple to apply additional reinforcement.
Barbell

High Load Capacity

Engineered for strength and stability, our high load capacity variants are ideal for heavy-duty construction use.
Belt

Robust and Durable

CFS Staircase Connectors are more durable than plastic formers, with a robust metal former available for fixing to timber or steel moulds including magnets.

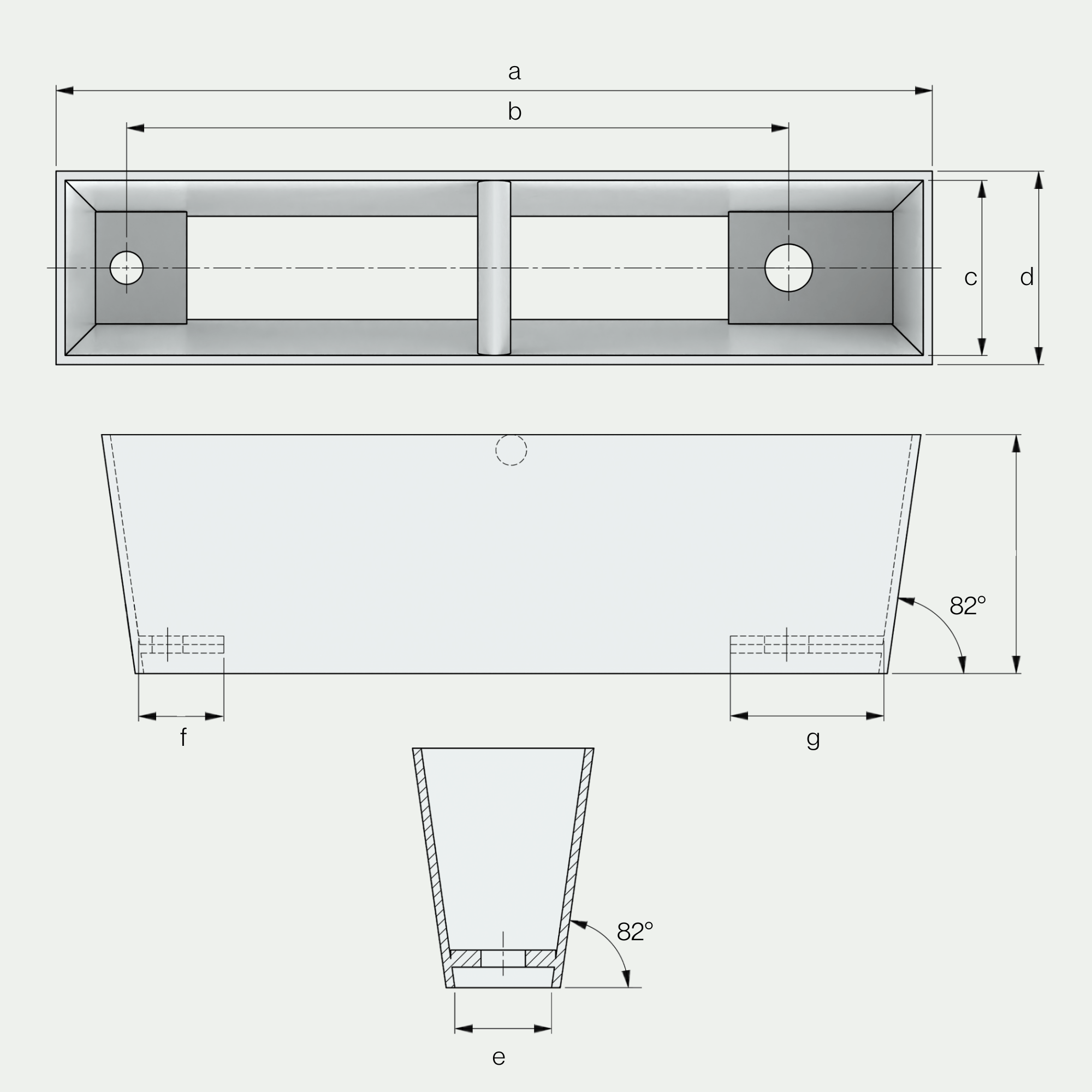

Geometry

a drawing of a container with the letters a b c d and e visible

SKU

a [mm]

Length

b [mm]

Length

c [mm]

Width

d [mm]

Width

e [mm]

Width

f [mm]

Hole to edge distance

g [mm]

Hole to edge distance
CVS FORMER
240
178
47
53
27
25
45
CVS FORMER comes in one standard size and is compatible for use with CVS 40, CVS 60 and CVS 100.

Materials

Component

Material

Description

Former
Steel
Steel according to EN 10305
