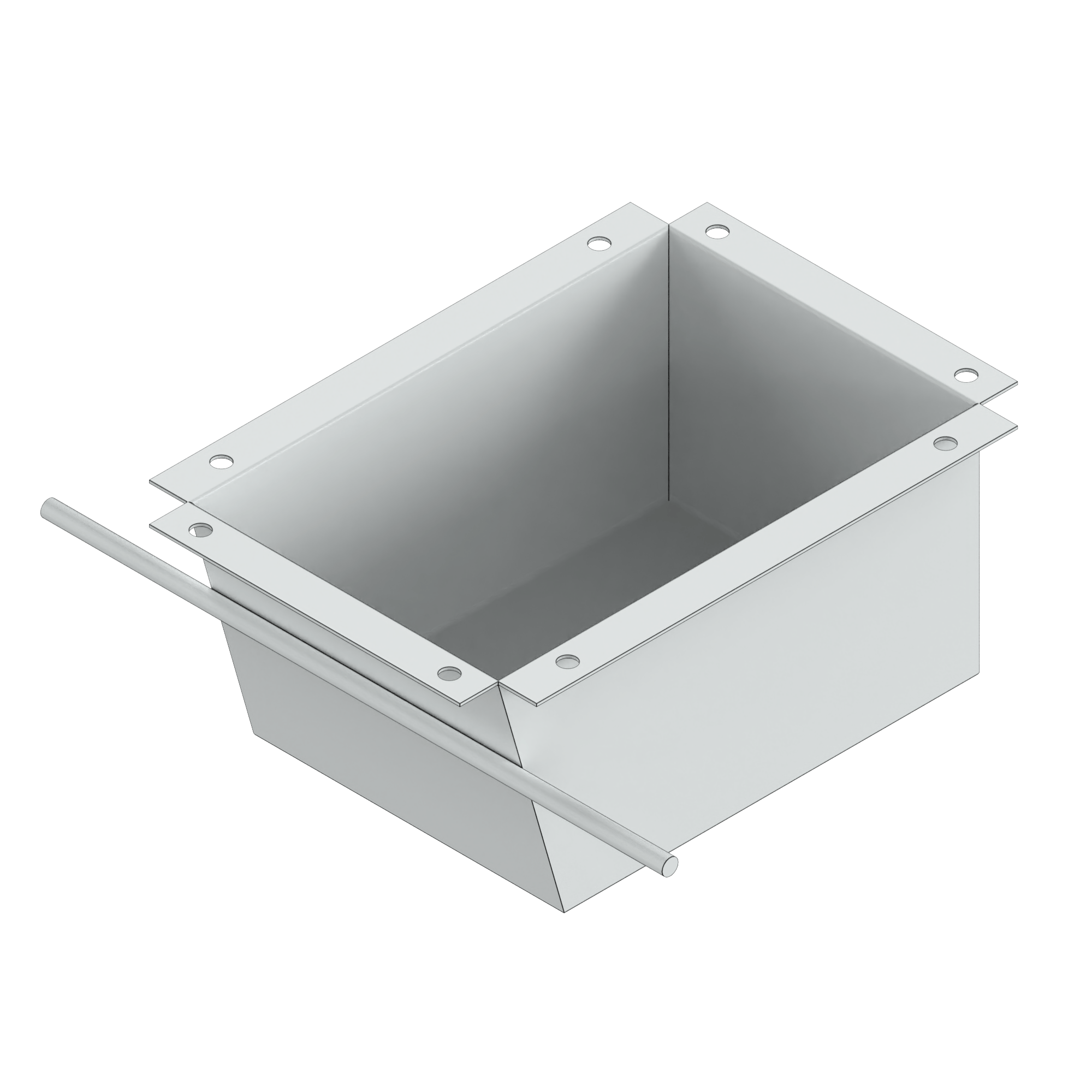

A rectangular metal container with a top mounting flange and a horizontal rod on one side.

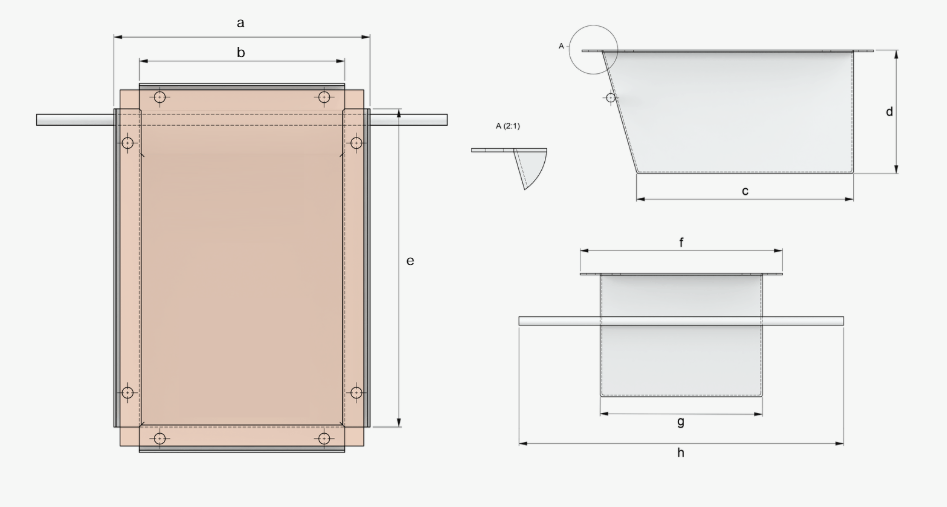

Technical drawing of a rectangular component with mounting rods, shown in multiple views with labeled dimensions.
1 of 2

WFT Staircase Former

CFS-WFT


WFT Staircase Former features nail holes for nailing to timber. We also offer a WFS variant for fixing to steel.

Features

Hammer

Easy Installation

CFS Staircase Products offer easy installation on site with simple to apply additional reinforcement.
Barbell

High Load Capacity

Engineered for strength and stability, our high load capacity variants are ideal for heavy-duty construction use.
Belt

Robust and Durable

CFS Staircase Connectors are more durable than plastic formers, with a robust metal former available for fixing to timber or steel moulds including magnets.

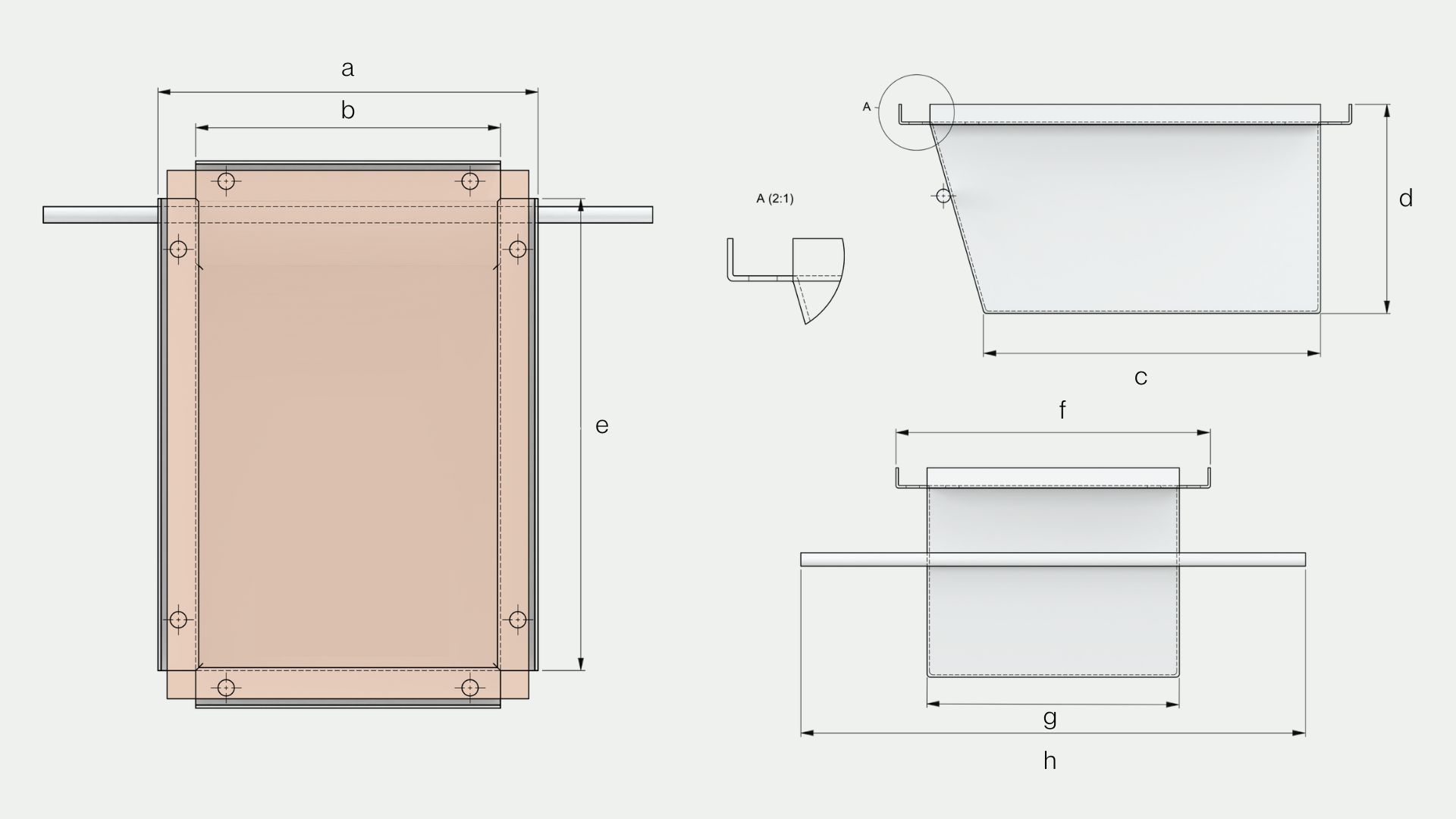

Geometry

SKU

a [mm]

Width

b [mm]

Width

c [mm]

Length

d [mm]

Height

e [mm]

Length

f [mm]

Width

g [mm]

Box width

h [mm]

Length
CFS-WFT
187
144
200
124.5
232
187
150
300

Resources

Staircase Category Brochure

PDF
6.56mb

WFT Former Technical Datasheet

PDF
0.32mb
