Bolt Anchor

BA

Hex-head bolt with threaded socket, ideal for slab-type element casting. Available in stainless steel on request.

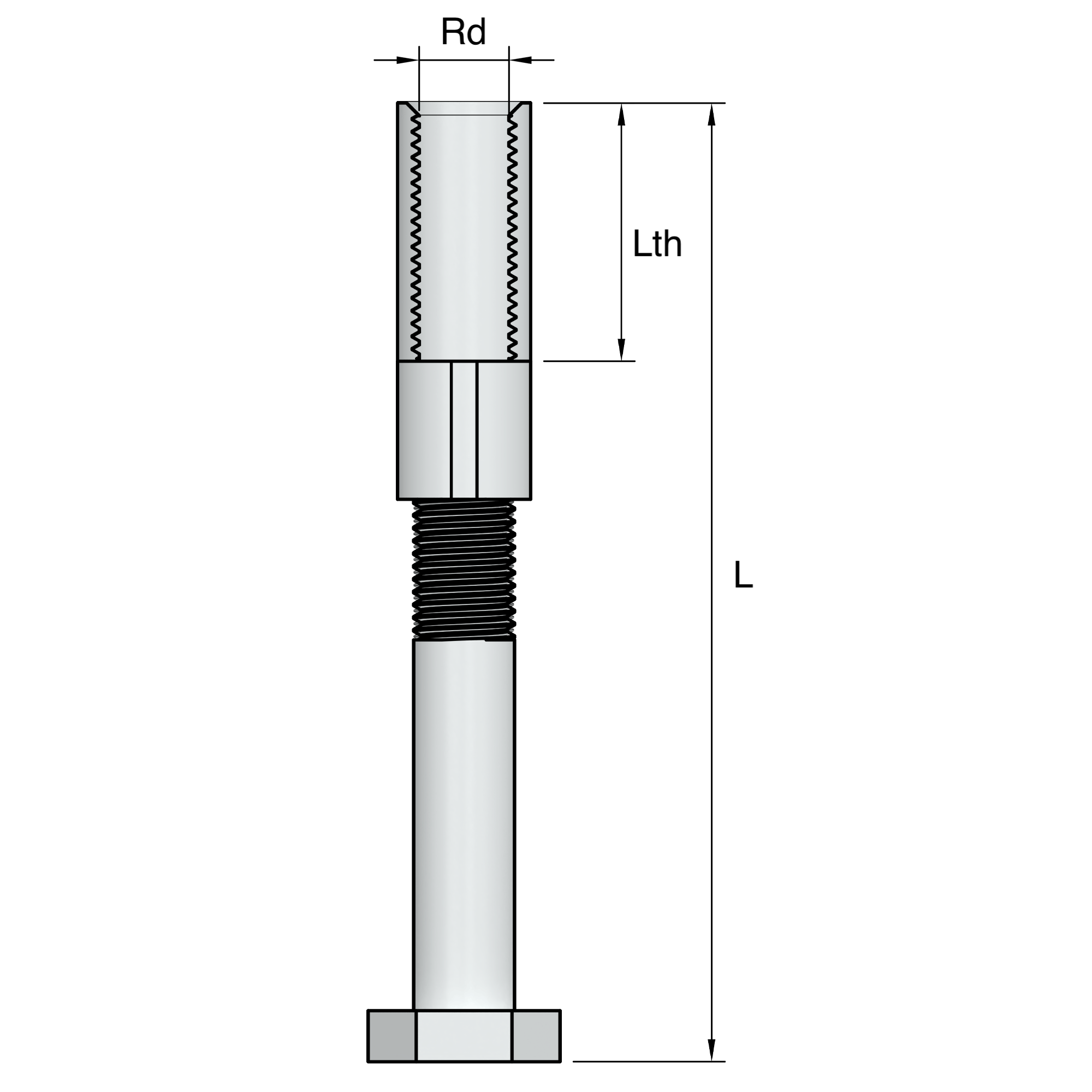

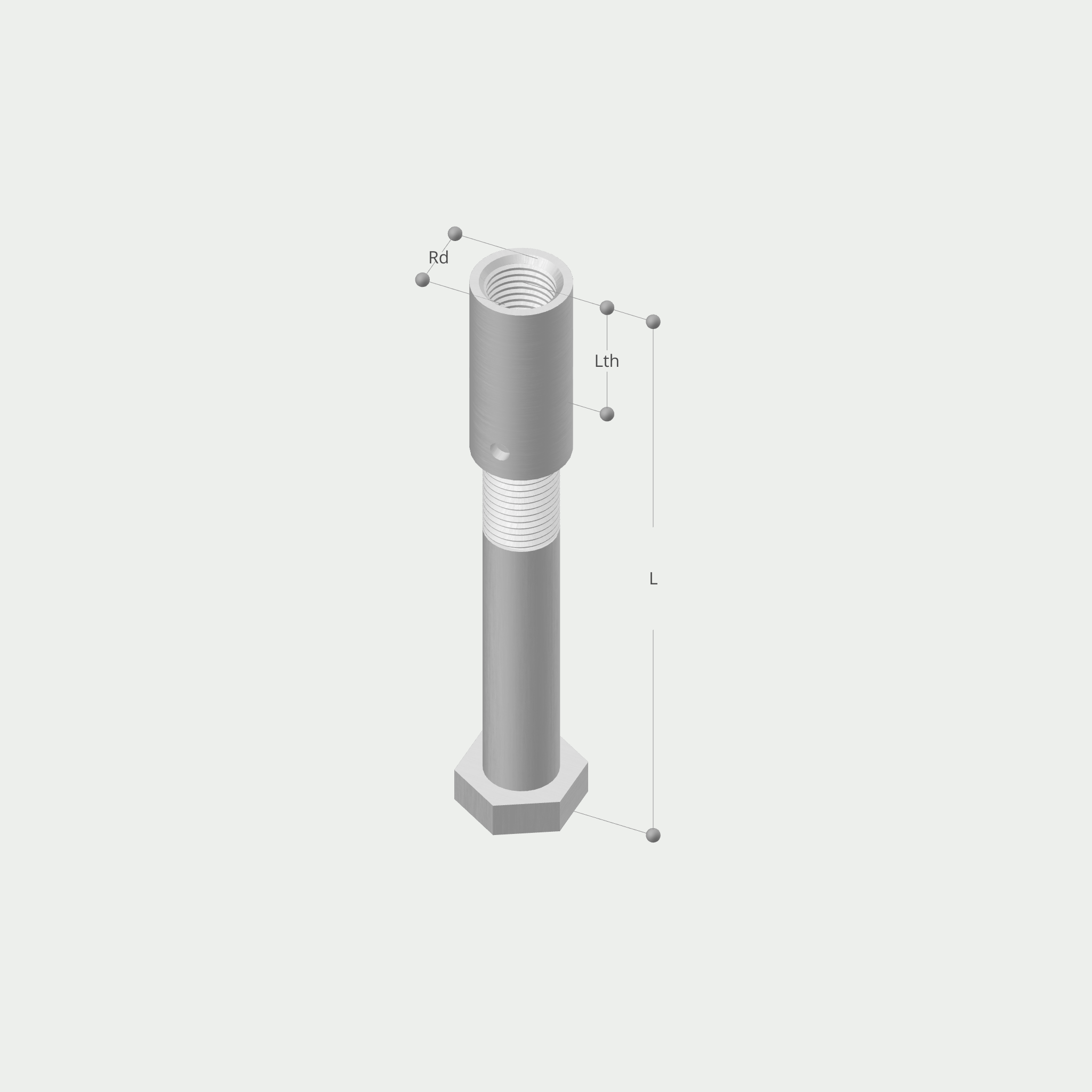

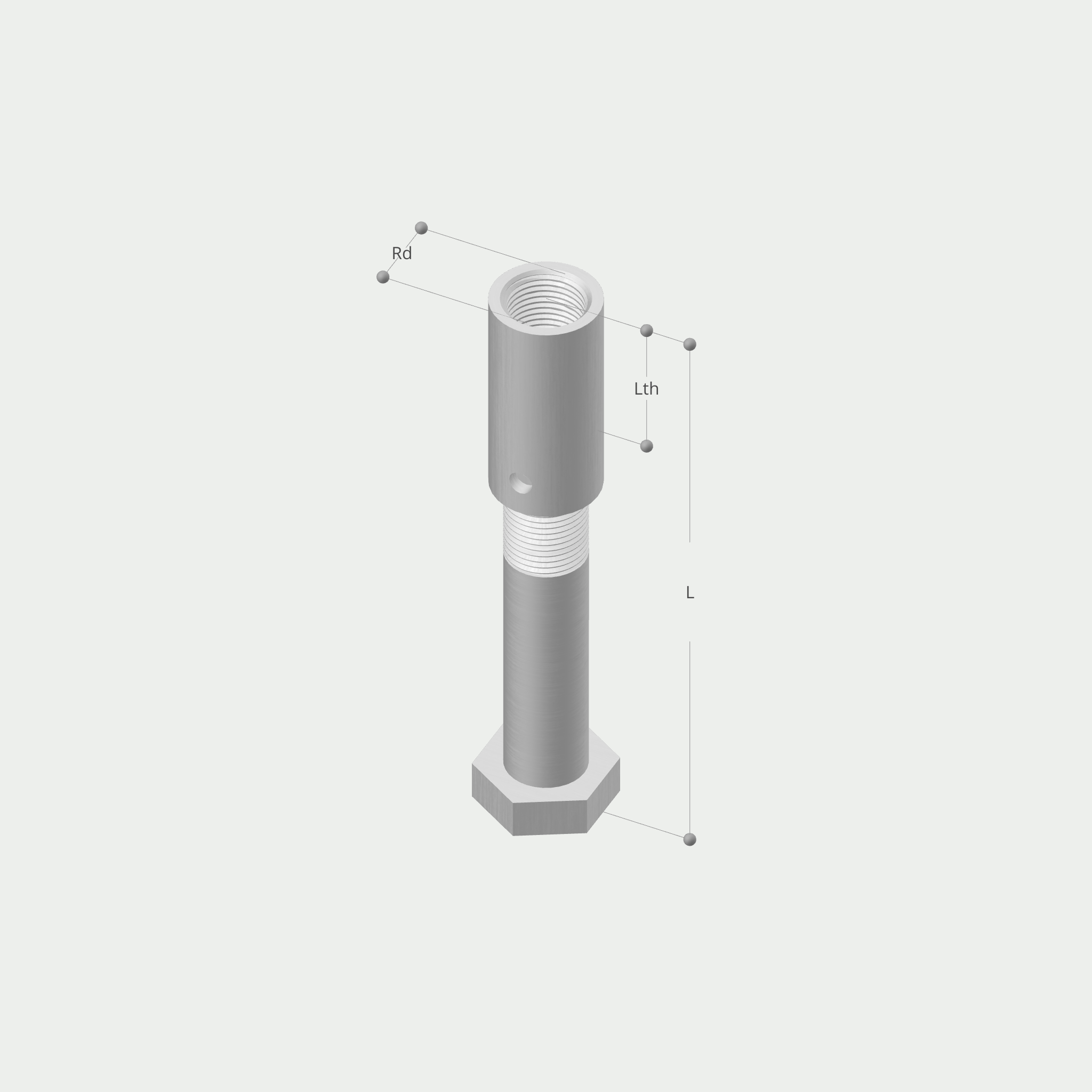

Geometry

360
Click to interact
a drawing of a bolt and screw on a black background .
1 of 2

SKU

tn

Load group

Rd [mm]

Diameter

Lth [mm]

Screw in depth

L [mm]

Length
BA-12-55
0.5
12
23
55
BA-12-100
0.5
12
23
100
BA-12-150
0.5
12
23
150
BA-16-75
1.2
16
29
75
BA-16-140
1.2
16
29
140
BA-16-220
1.2
16
29
220
BA-20-90
2
20
35
90
BA-20-150
2
20
35
150
BA-20-180
2
20
35
180
BA-20-270
2
20
35
270
BA-24-200
2.5
24
45
200
BA-30-240
4
30
60
240
BA-36-300
6.3
36
74
300
Rd - thread for the lifting situation. All capacities shown in this section are based on the lifting design criteria. M - thread for the fixing situation. Please contact CFS for lifting capacities.

Load Data

360
Click to interact

SKU

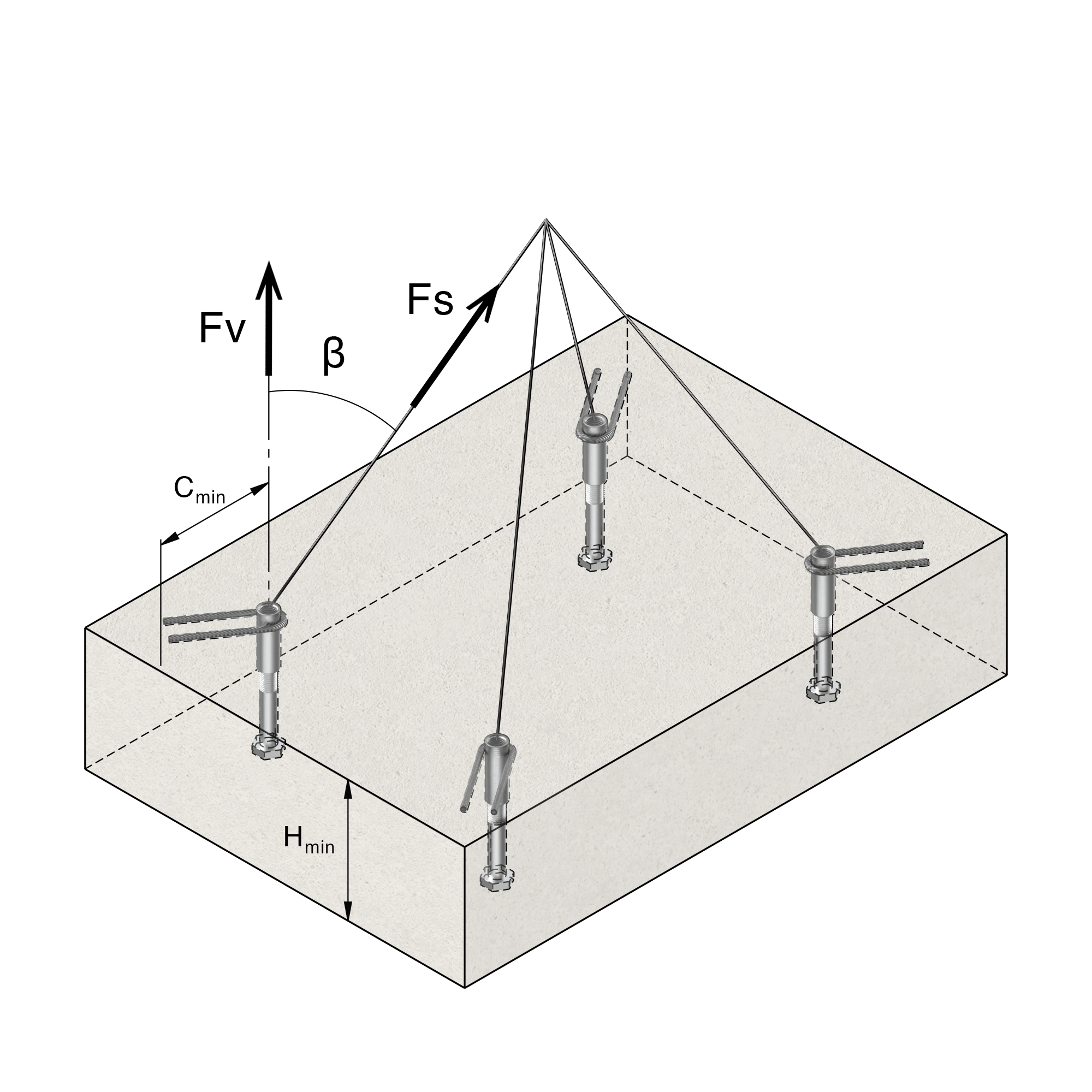

Installation Parameters

Max. Load Capacity (C15)

Max. Load Capacity (C25)

Hmin [mm]

Min. element thickness

Cmin [mm]

Min. edge distance

Fᵥ [kN]

Axial load

Fₛ [kN]

Angled load 10° to 45°

Fᵥ [kN]

Axial load

Fₛ [kN]

Angled load 10° to 45°
BA-12-55
80
90
5.1
5.1
6.6
6.6
BA-12-100
120
150
8.6
8.6
11.1
11.1
BA-12-150
170
230
8.6
8.6
11.1
11.1
BA-16-75
100
120
8.2
8.2
10.6
10.6
BA-16-140
200
200
12.8
12.8
16.5
16.5
BA-16-220
240
250
12.8
12.8
16.5
16.5
BA-20-90
150
250
10.6
10.6
13.7
13.7
BA-20-150
200
300
20
20
25.8
25.8
BA-20-180
200
350
20
20
25.8
25.8
BA-20-270
290
400
20
20
25.8
25.8
BA-24-200
220
300
28.8
28.8
37.2
37.2
BA-30-240
260
350
48.3
48.3
62.4
62.4
BA-36-300
320
450
68.3
68.3
88.8
88.8
Please note, data is valid with additional reinforcement shown in our catalogue. The capacities are based on cubic strength.
